Disconnect all power sources before making any connections.
1
Connect the cable from the satellite antenna to
the satellite receiver.
2
Attach the coaxial cable from the incoming
cable connection or antenna to VHF/UHF IN
on the VCR.
3
Using a coaxial cable, connect VHF/UHF
OUT on the VCR to VHF/UHF on the
projection TV.
4
Using AUDIO and S VIDEO* cables, connect
AUDIO and S VIDEO OUT on the DBS
receiver to AUDIO and S VIDEO IN on the
VCR.
5
Using AUDIO and S VIDEO* cables, connect
AUDIO and S VIDEO OUT on the VCR to
AUDIO and S VIDEO IN on the projection TV
(White-AUDIO Left, Red-AUDIO Right).
* If your VCR or DBS receiver is not equipped
with S VIDEO, use a VIDEO cable (yellow)
instead of the S VIDEO cable.
Note:
• To view input from the DBS or VCR, select the
video input which your DBS receiver or VCR is
connected to by pressing TV/VIDEO on the remote
control.

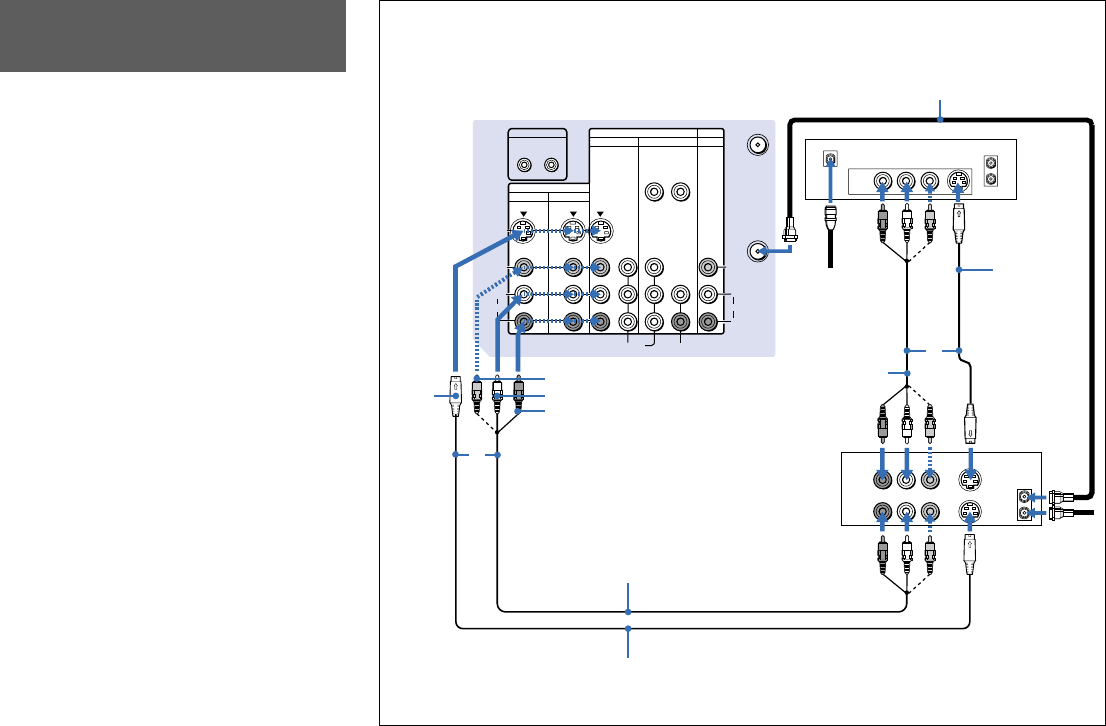

Connecting a DBS (Direct
Broadcast Satellite) Receiver
and VCR
S VIDEO
VIDEO
AUDIO
L
R
R
VIDEO
(MONO)
IN
IN
CONTROL S
IN OUT
OUT
VIDEO 4
VIDEO 1 VIDEO 3
VIDEO 5 (DTV)
SELECT
Y
P
B
PR
Y/G
HD VD
P
B/B
P
R/R
L
(MONO)
R
L
AUDIO
AUDIOCOMPONENT
VHF/UHF
AUX
LINE
OUT
OUT
IN
AUDIO R AUDIO L VIDEO
S VIDEO
VHF/UHF
LINE
IN
AUDIO R AUDIO L VIDEO
SATELLITE IN
VHF/UHF
S VIDEO
OUT
IN
LINE OUT
(Rear of projection TV)
AUDIO-R
VMC-810S/820S
(not supplied)
YC-15V/30V
(not
supplied)
S
VIDEO
AUDIO-L
4
2
Cable/
Antenna
Satellite
antenna
cable
VIDEO
5
VCR
VMC-810S/820S (not supplied)
YC-15V/30V (not supplied)
1
3
DBS
Coaxial cable
(not supplied)
