Hardware Setup SY-6BA+ III
15
6. ATX Power On/Off Switch
Attach the 2-pin momentary type switch to the PWRBT header for
turning On or Off your ATX power supply.
Step 7. Back Panel Connections
All external devices such as the PS/2 keyboard, PS/2 mouse, printer,
modem, USB can be plugged directly onto the Motherboard back
panel.
Only after you have fixed and locked the Motherboard to the
computer case can you start connecting the external peripheral
devices.

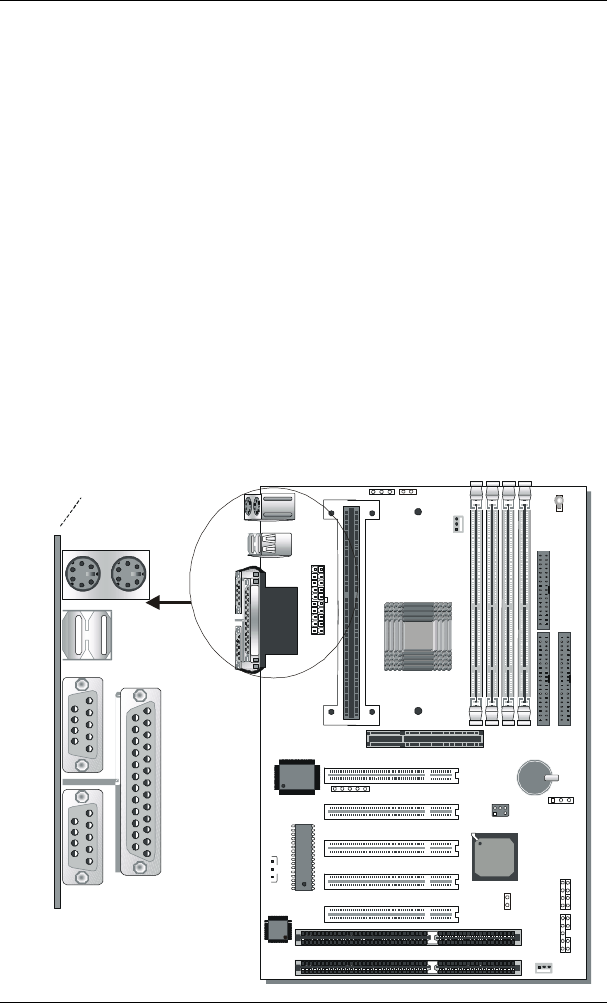

When connecting an external device, use the following figure to
locate and identify which back panel connector to plug the device to.
®
®
1
®
COM 1
COM 2
PRT
USB 1
USB 2
PS/2 KB
Connector
PS/2 Mouse
Connector
