Telenetics 2185
1-6
Co-Located Terminals
Any combination of subchannel DTE devices and subchannel DCE
devices is possible. For example, local subchannel terminals can be co-
located with modes that communicate with devices at remote sites. Fig-
ure 1-3 shows an example of co-located terminals in the port-sharing
mode. Co-location of ports and modems is also possible in the modem-
sharing mode.

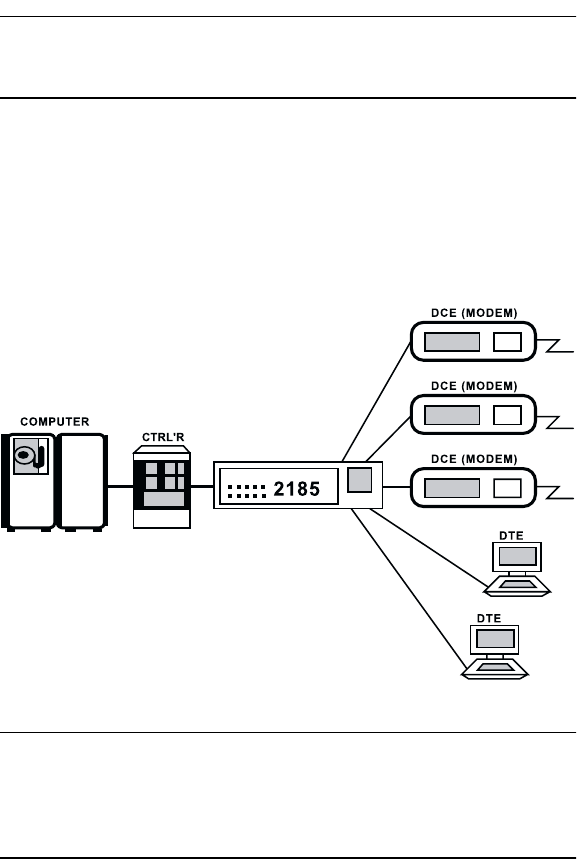

Figure 1-3. Co-Located Terminals Application
Cascading the 2185
The 2185 can be cascaded to increase the number of channels connected
to the main channel controller. Cascading is accomplished by connect-
ing the main channel of one unit to a subchannel of another unit. See
Figure 1-4.
