Archer C5
AC1200 Wireless Dual Band Gigabit Router
- 102 -

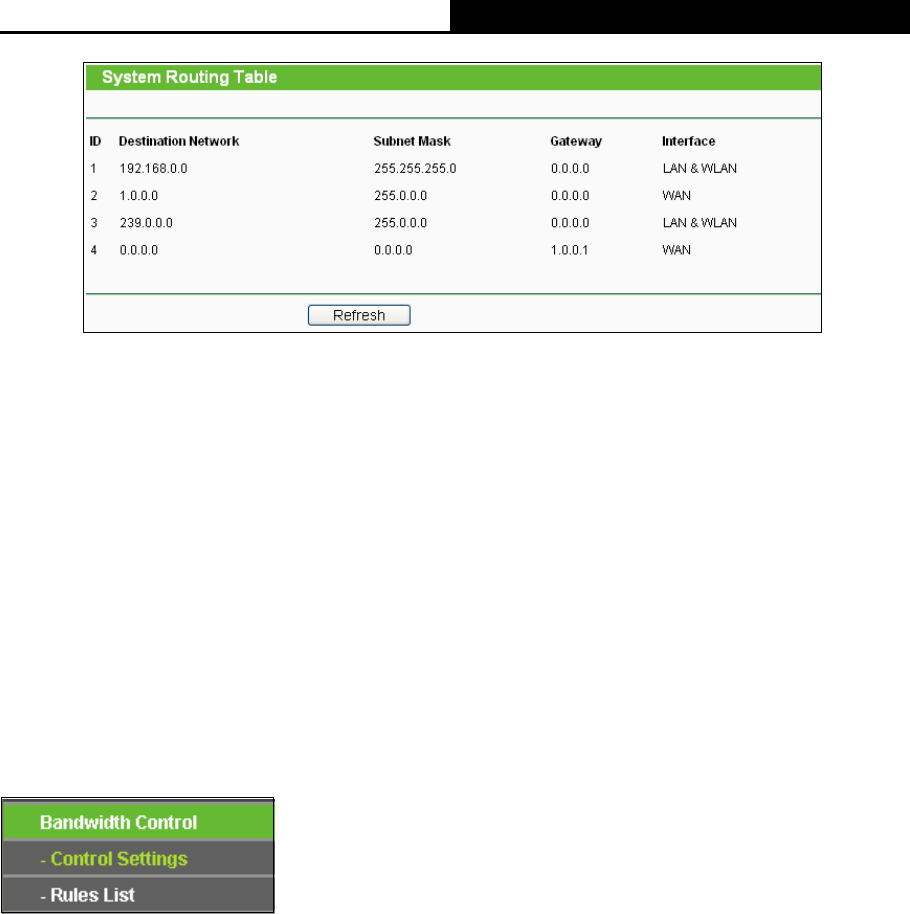

Figure 4-98 System Routing Table
Destination Network - The Destination Network is the address of the network or host to
which the static route is assigned.
Subnet Mask - The Subnet Mask determines which portion of an IP address is the network
portion, and which portion is the host portion.
Gateway - This is the IP address of the gateway device that allows for contact between the
router and the network or host.
Interface - This interface tells you either the Destination IP Address is on the LAN & WLAN
(internal wired and wireless networks), or on the WAN (Internet).
4.17 Bandwidth Control
Figure 4-99 Bandwidth Control
There are two submenus under the Bandwidth Control menu as shown in Figure 4-99: Control
Settings and Rules List. Click any of them, and you will be able to configure the corresponding
function. The detailed explanations for each submenu are provided below.
4.17.1 Control Settings
Choose menu “Bandwidth Control
→
Control Settings”, and then you can configure the
Egress Bandwidth and Ingress Bandwidth in the next screen. Their values you configure should
be less than 100000Kbps. For optimal control of the bandwidth, please select the right Line Type
and ask your ISP for the total bandwidth of the egress and ingress.
