6
Unlock the Optical Assembly of the Transparency Adapter
1.

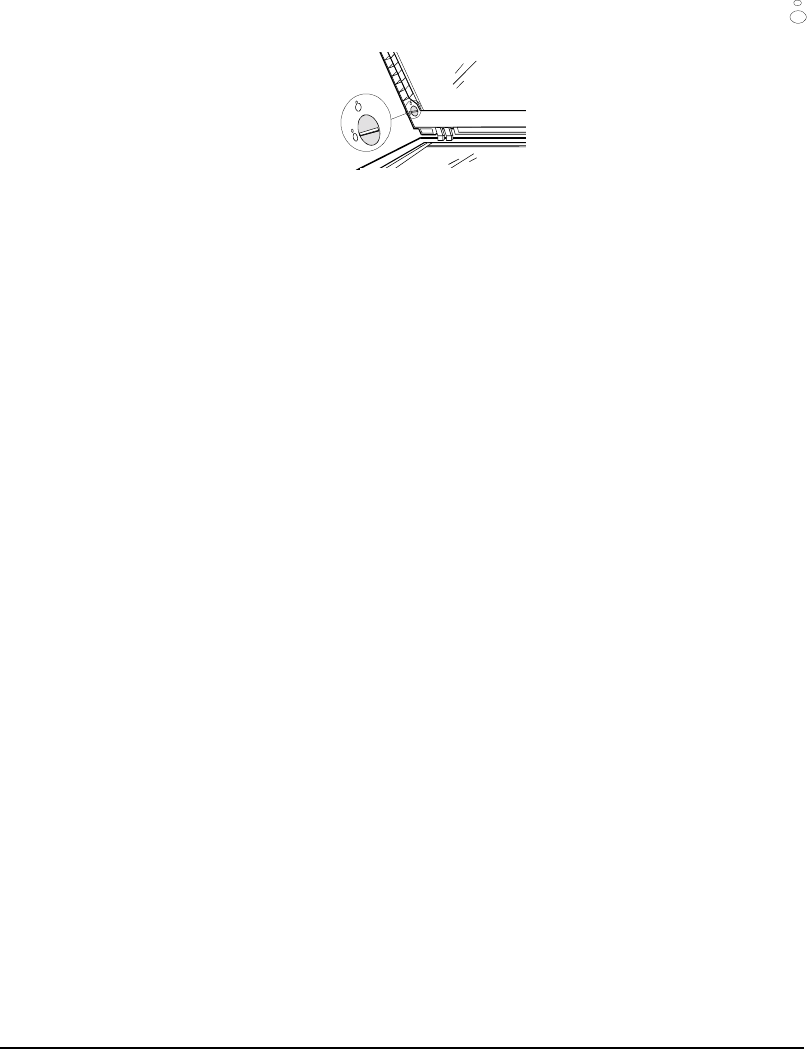

Find the Carriage Lock on the underside of the adapter near the rear.
2.
Insert a coin in the Carriage Lock. Turn it until it points to the unlocked mark,
.
Note
: Before attempting to transport your scanner, it is important that you lock
the optical assembly in place to avoid any possible damage to the
transparency adapter's optical components. Insert a coin in the Carriage
Lock. Turn it until points to the lock mark.
Care and Maintenance Tips
Regularly clean the object glass of the scanner to prevent dirt or smudge build-up
that may reduce the quality of your scanned images. Before you clean the object
glass, make sure the scanner power is off and the power cord is unplugged.
Clean the object glass of the scanner with a soft damp cloth and a mild detergent or
alcohol.
Note
: Avoid spraying cleaning fluid directly on the object glass. This may cause the
liquid to penetrate the seams around the glass and contaminate the mirrors
and lenses inside the scanner. Spray the liquid on the cleaning cloth then wipe
the glass clean.
Be sure that nothing covers the calibration area. It is important to keep the
calibration area clean since dust or smudge marks on the glass will reduce the quality
of scanned transparencies.
Do not leave transparencies on the object glass of the scanner for excessive periods
of time. The warmth of the scanner lamps may cause them to deteriorate. Please, use
the frame holders to secure the transparencies for scanning.
Unlock Position
