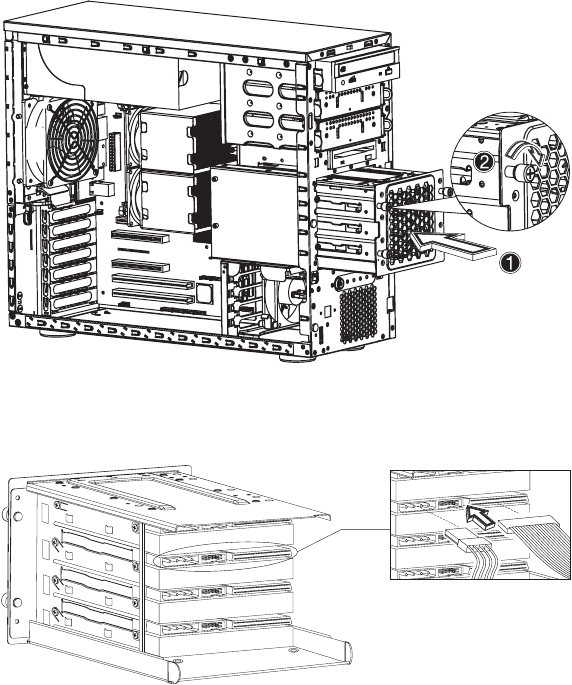

To install the cage
1 Turn off the system and all the peripherals connected to it.
2 Unplug all cables from the power outlets.
3 Place the system unit on a flat, stable surface.
4 Remove the front bezel, side panel and air baffle.
5 Insert the cage into the housing (1), then tighten the four
thumbscrews to secure it to the chassis (2).
6 Connect the HDD bus cable and the power cable to the hard disk
drive.
7 Reinstall the air baffle and the chassis panels.
