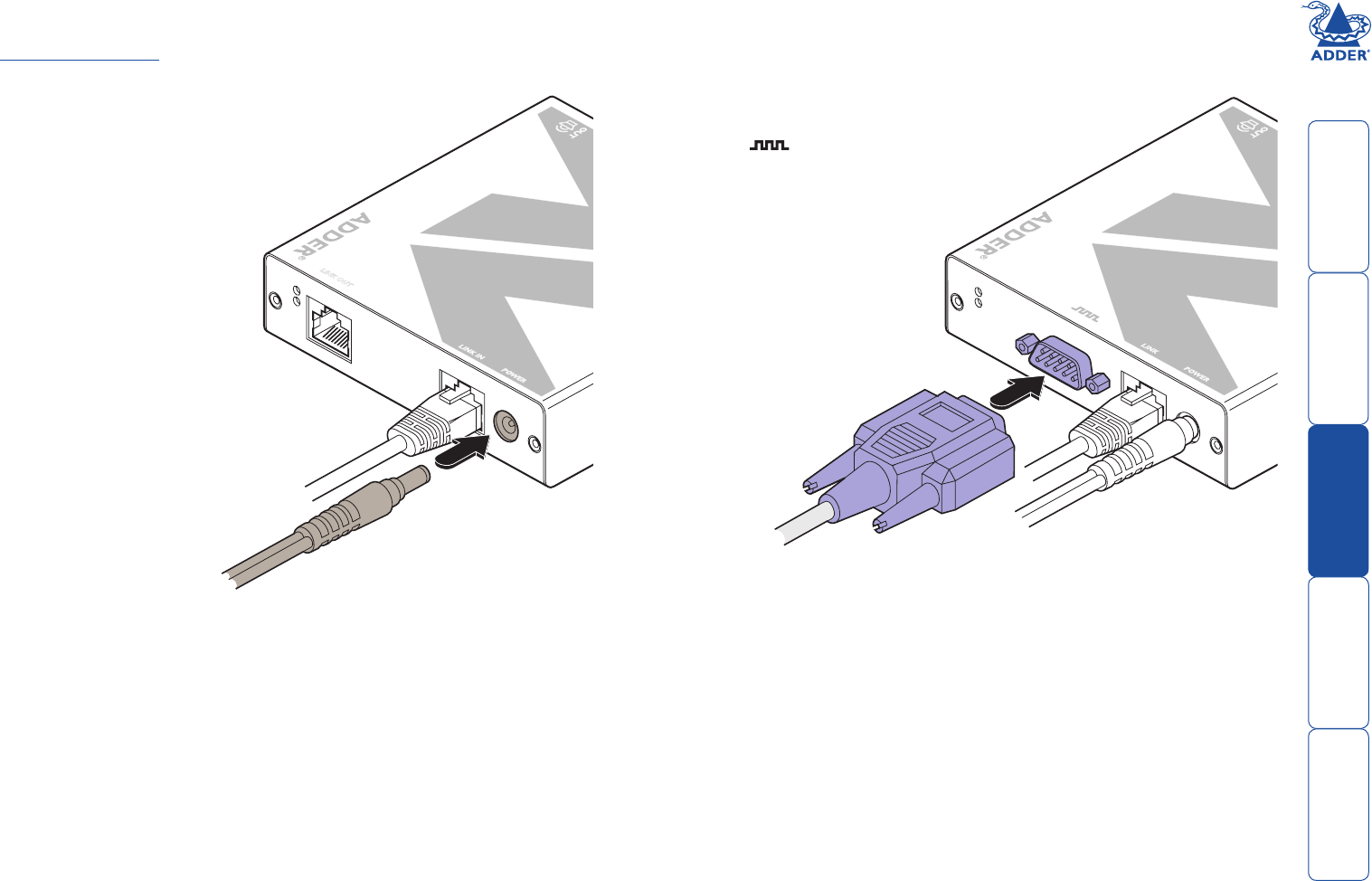

To connect the power supply
NOTE: Please read and adhere to the electrical safety information given within
the Safety information section of this guide. In particular, do not use an
unearthed power socket or extension cable.
1 Attach the output connector of the power supply to the
socket labelled POWER on the AdderLink AV receiver.
2 Insert the IEC connector of the power cable into
the corresponding socket of the power
supply.
3 When all other connections have
been made at the transmitter
and receiver modules, connect
the other end of the power
cable to a nearby earthed
mains socket.
RECEIVER
SKEW
GB
SKEW
RG
BRIGHT
SHARP
LINKO
UT
101
ADDERLINK
OUT
OUT
To connect a serial device (AdderLink AV200 only)
Note: The serial port feature supports RS232 serial devices at speeds up to
57600 baud and all hardware handshake lines are available. No extra error
checking on the serial port signals is applied.
1 Attach the female connector of the serial device’s link cable
(or Adder part number: CAB-9M/9F-2M) to the socket
labelled on the AdderLink AV200 receiver.
2 Ensure that the other end of the serial cable
is securely attached to the appropriate
RS232 socket of the serial device.
