16
Cascading transmitters
Expansion at the transmitter end
is achieved using the video and
audio output ports. The signals
from these ports are connected
to the video and audio inputs of
the next transmitter and so on.
AdderLink AV100 and AV104
transmitters can be mixed in a
cascade in any order using the
method discussed here.
The RS232 serial port of an AdderLink AV200
transmitter cannot be cascaded, therefore, if
an AV200 transmitter is involved in a cascade,
it should be placed as the primary transmitter,
connected directly to the source PC system.
NOTE: Ensure that there are no more than three cascades
(transmitter or receiver cascades) between the primary
transmitter and the furthest receiver in any branch.
CASCADE LINK
CASCADE LINK
STANDARD LINKS
STANDARD LINKS
CASCADE LINK
CASCADE LINK
VIDEO
AUDIO
POWER
POWE
R
PC
TRANSMITTER
TRANSMITTER
Primary
Transmitter

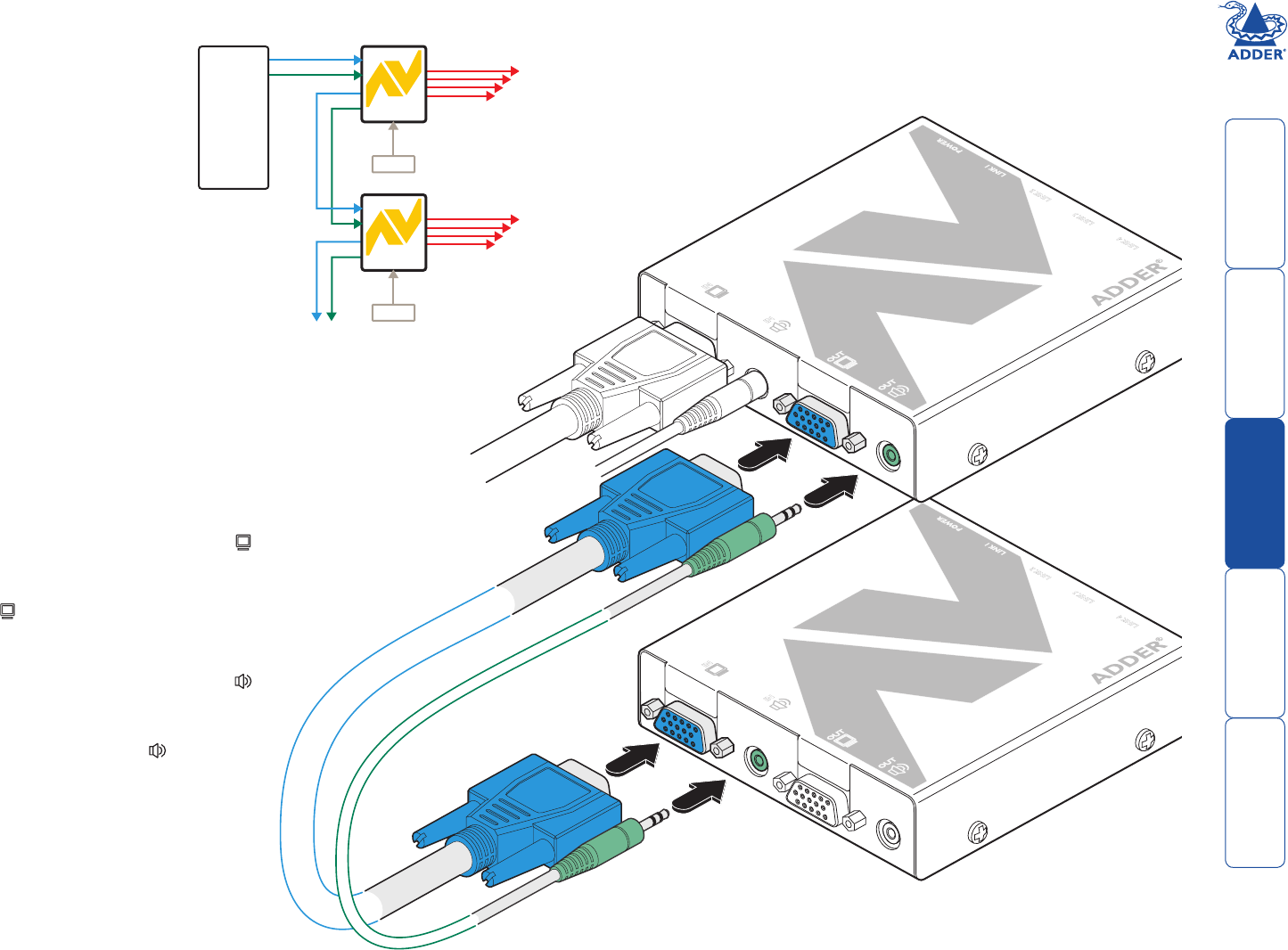

To connect cascaded transmitters
1 Attach a video cable of suitable type and length (fully shielded with
15 way male D-type connectors at both ends, 2m or less - Adder part
number: VSC18) to the socket labelled
OUT
on the primary AdderLink AV
transmitter.
2 Attach the other end of the video cable to the socket
labelled
IN
on the secondary AdderLink AV transmitter.
3 Attach a stereo audio cable (shielded with three
way 3.5mm jack plugs at both ends - Adder part
number: VSC22) to the socket labelled
OUT
on
the primary AdderLink AV transmitter.
4 Attach the other end of the stereo audio
cable to the socket labelled
IN
on the
secondary AdderLink AV transmitter.
5 Repeat such cascade links until the
required number of transmitters (up to a
maximum of four) are present. Connect
the remaining signal and power cables
to the added transmitters (and their
respective receivers) as discussed earlier
within this chapter.
TRANSMITTER
LINK
2
LINK
3
LINK
4
10
4
ADDERLINK
IN
IN
TRANSMITTER
LINK2
LINK
3
LINK4
104
ADDERLINK
IN
IN
Primary transmitter
Secondary transmitter
