Further expansion

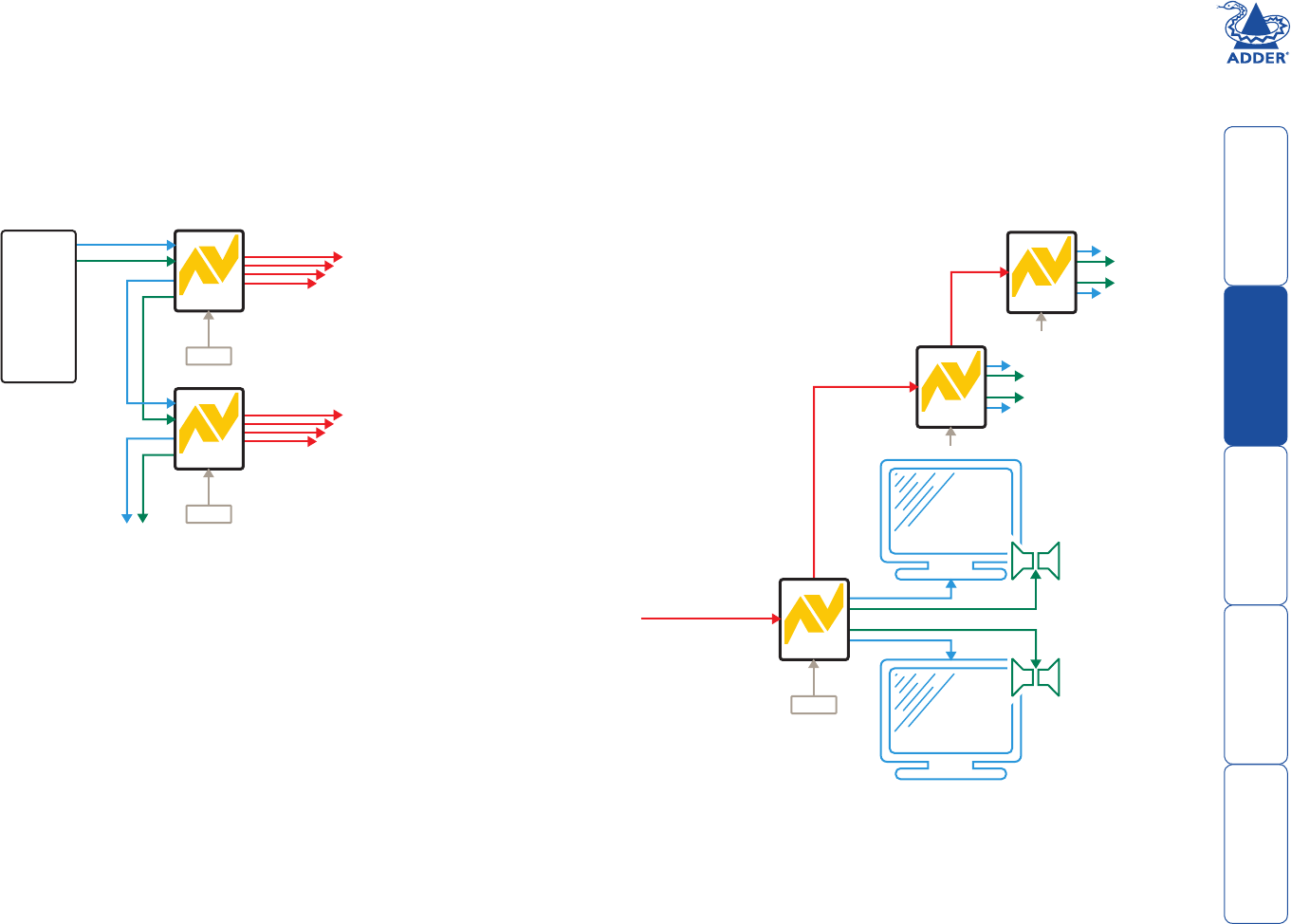

Transmitter cascading
As mentioned earlier, the AV100,
AV104 and AV200 transmitters
are all capable of supporting
additional transmitter modules (and
their subsequent receivers). This
is achieved using the video and
audio out ports
to provide the
inputs into the
next transmitter
module, and so
on. A limit of
three cascade
connections
(comprising both
transmitter and/or
receiver cascades)
is possible within
any branch of the
system.
VIDEO
CASCADE LINK
CASCADE LINK
STANDARD LINKS
STANDARD LINKS
AUDIO
CASCADE LINK
CASCADE LINK
POWER
POWER
PC
TRANSMITTER
TRANSMITTER
STANDARD LINK
CASCADE LINK
CASCADE
LINK
POWER
RECEIVER
RECEIVER
RECEIVER
101
101
101
Receiver cascading
This method of expansion is limited
to the AV101 receivers as only they
are equipped with the necessary
LINK OUT cascade port. Using
the LINK OUT port, the video and
audio signals are transferred via
CATx cabling to the next
receiver. This receiver can
then drive its own dual
display/speaker sets as well
as provide a further LINK
OUT to a third and nal
AV101 receiver. A limit of
three cascade connections
(comprising both
transmitter and/or receiver
cascades) is possible within
any branch of the system.
Any of the AV transmitters can be connected in cascade to
provide further audio and video expansion opportunities
The AdderLink AV101 receivers offer the further
benet of receiver cascading to provide multiple
audio and video outputs on every branch
