AT-2711 Series Fast Ethernet Adapter Installation Guide
113
Wake Up Capabilities
The Wake Up Capabilities feature enables the network adapter to wake up
from a low-power mode when the adapter receives a network wake-up
data unit. Two types of wake-up data units can be accepted: Magic packet
and Wake Up frame.
To change the Wake Up Capabilities property, do the following:
1. Access the Advanced Properties.
See “Accessing Advanced Properties” on page 76.
2. Select Wake Up Capabilities in the Property box.
The Wake Up Capabilities page is displayed as shown in Figure 63.

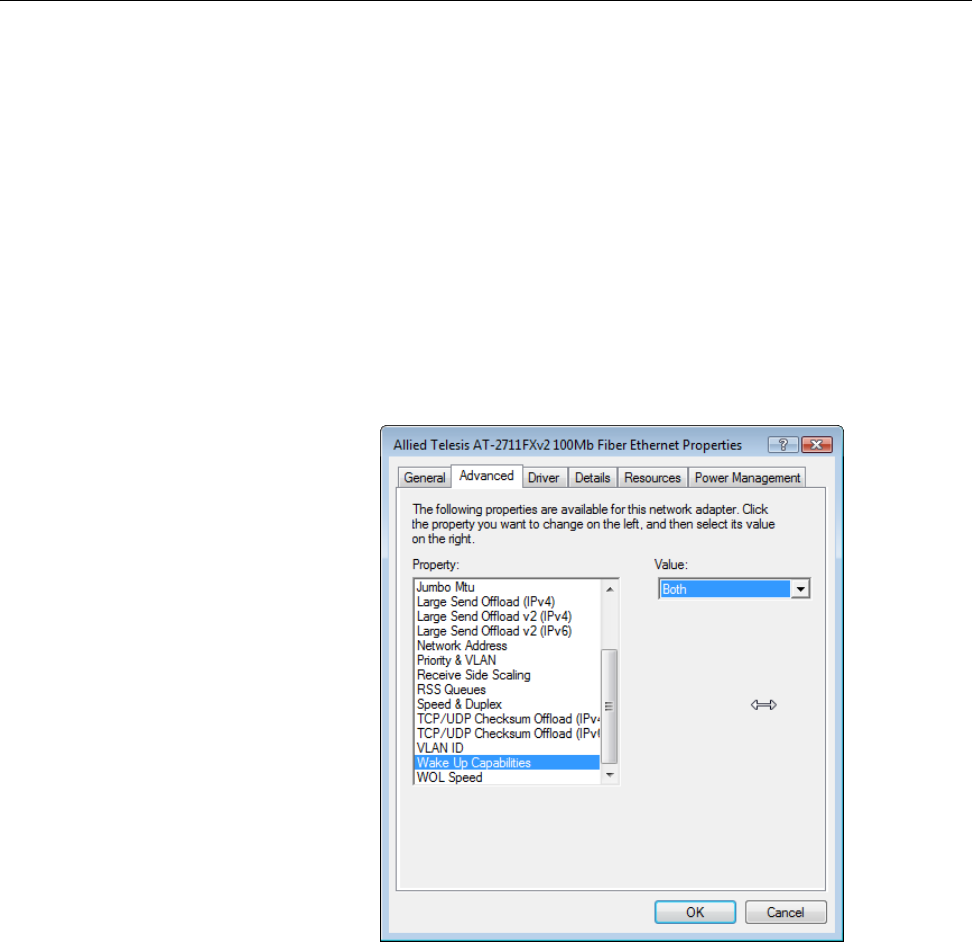

Figure 63. Wake Up Capabilities Page
