ASUS A7A266-E User’s Manual 17
3. HARDWARE SETUP
1) JumperFree™ Mode (JEN)
This jumper allows you to enable or disable the JumperFree™ mode. The
JumperFree™ mode allows processor settings to be made through the BIOS
setup (see 4.4 Advanced Menu). The default setting is for JumperFree mode: all
DSWs come set to the OFF position and the JEN jumpers are set to [2-3].
Setting JEN
JumperFree [2-3] (default)
Jumper Mode [1-2]

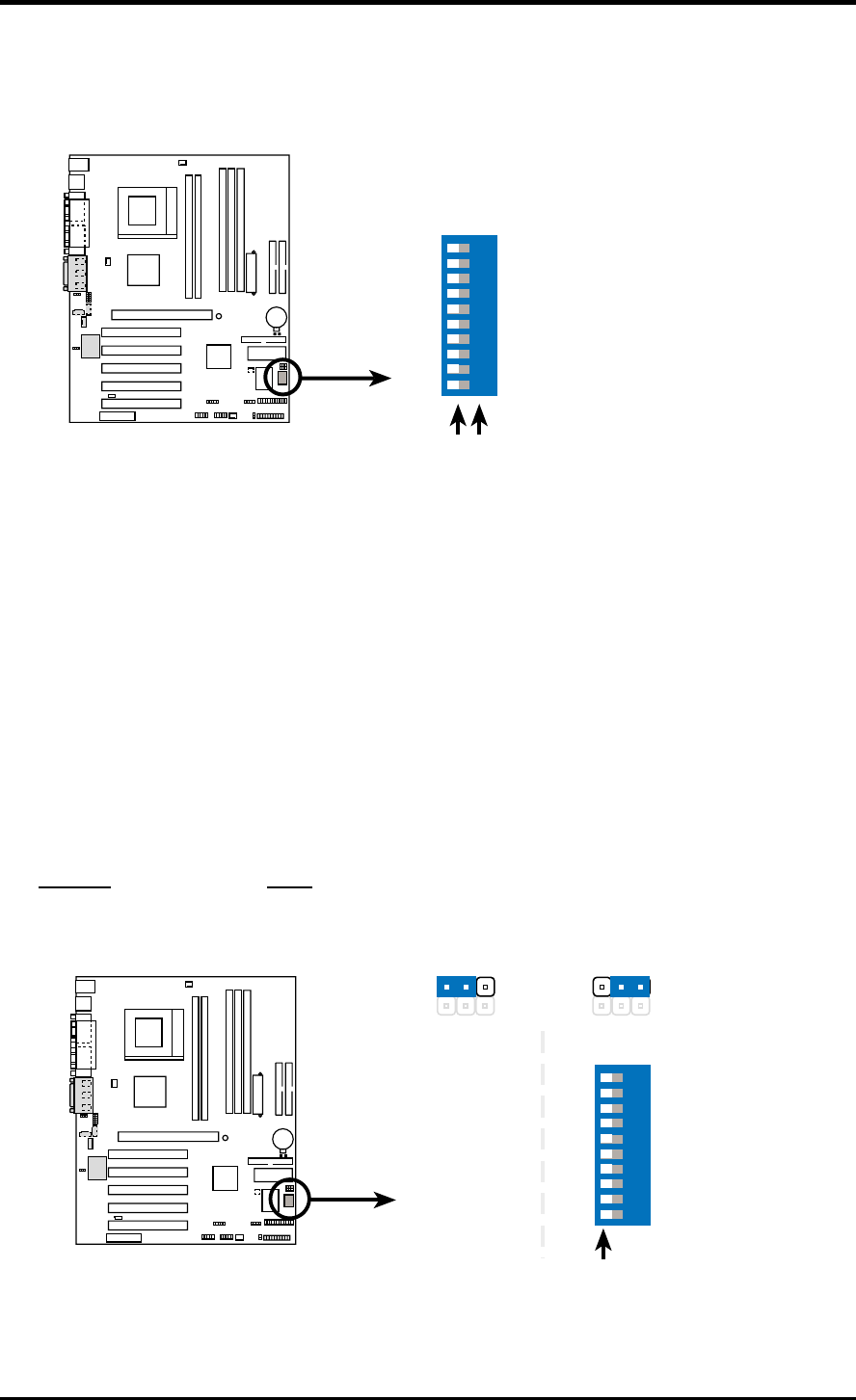

Motherboard Features Settings (DIP Switches - DSW)
The motherboard’s onboard functions are adjusted through the DIP switches. The
white block represents the switch’s position. The example below shows all the
switches in the OFF position.
0101
A7A266-E
A7A266-E DIP Switch
1-10: Frequency Multiples
DSW
ON
2 34
OFF ON
11 5
6
7
8 9
10
A7A266-E Jumper Mode Setting
JEN
0101
A7A266-E
OFF (Default)
DSW
Jumper Free (Default)
2
3
Jumper Mode
12
ON
2 34
11 5
6
7
8 9
10
