6. INTERFACE (Connecting with Peripheral Equipment)
6.1 Parallel Interface
6.1.1 Specifications
Data input method : 8 bit parallel signal (DATA 1~8)
Control signals: ACK ,BUSY ,STB ,FAULT ,PE ,RESET
Applicable connector : Printer side 57LE-40360 (Equivalent to amphenol )
Cable side 57-30360 Equivalent to amphenol)

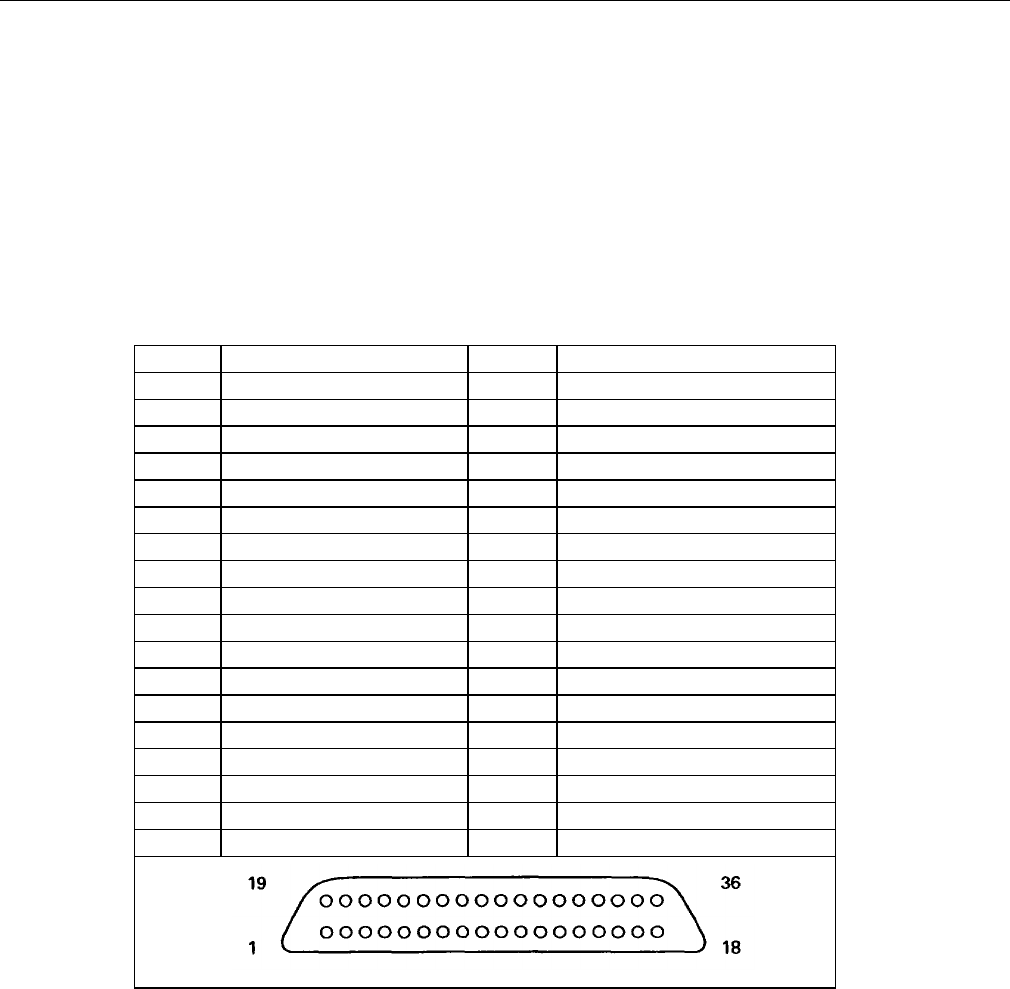

6.1.2 CONNECTOR’S PIN CONFIGURATION
No. SIGNAL NAME No. SIGNAL NAME
1 STB 19 TWISTED PAIR GND
2 DATA 1 20 TWISTED PAIR GND
3 DATA 2 21 TWISTED PAIR GND
4 DATA 3 22 TWISTED PAIR GND
5 DATA 4 23 TWISTED PAIR GND
6 DATA 5 24 TWISTED PAIR GND
7 DATA 6 25 TWISTED PAIR GND
8 DATA 7 26 TWISTED PAIR GND
9 DATA 8 27 TWISTED PAIR GND
10 ACK 28 TWISTED PAIR GND
11 BUSY 29 TWISTED PAIR GND
12 PE 30 TWISTED PAIR GND
13 +5V DC 31 RESET
14 32 FAULT
15 33 GND
16 GND 34 Drawer switch output
17 FRAME GND 35 +5V DC
18 36
