iDP-3210 User’s Manual
49/67 CITIZEN
(8) Specifying the Bit Image Mode (ESC * m n1 n2 D1 ~ Dn)
Code : [1B]h + [2A]h + m + n1 + n2 + Dn
+ {m= bit image mode (See the table below.)}
{0 is less than or equal to n1 is less than or equal to FF}
{0 is less than or equal to n2 is less than or equal to 02} Data is described in Hex code.
According to the bit image mode assigned in m, prints data in the bit image.
• The no. of dots printed is divided by 256, whose quotient is taken as n2 and residualas n1.
• The total no. of dots printed in the bit image is equal to n1 + (256 x n2).
• When bit image data have been input in excess of 1 dot/line (448 dots) position, the excess
data are discarded.
• In the bit image data (Dn), the bits subject to printing are taken as "1" and those not as "0".
• The bit image modes are shown as follows:
VERTICAL DIRECTION HORIZONTAL DIRECTION
m(Hex) MODE NO. OF DOTS DOT DENSITY DOT DENSITY MAX. NO OF DOTS
0 8-dot single density 8 78 DPI 77 DPI 224
1 8-dot double density 8 78 DPI 154 DPI 448
32 16-dot single density 16 156 DPI 77 DPI 224
33 16-dot double density 16 156 DPI 154 DPI 448
• When the value set in m (bit image mode) are out of conditions, the data following after n1 is
processed as printing data.

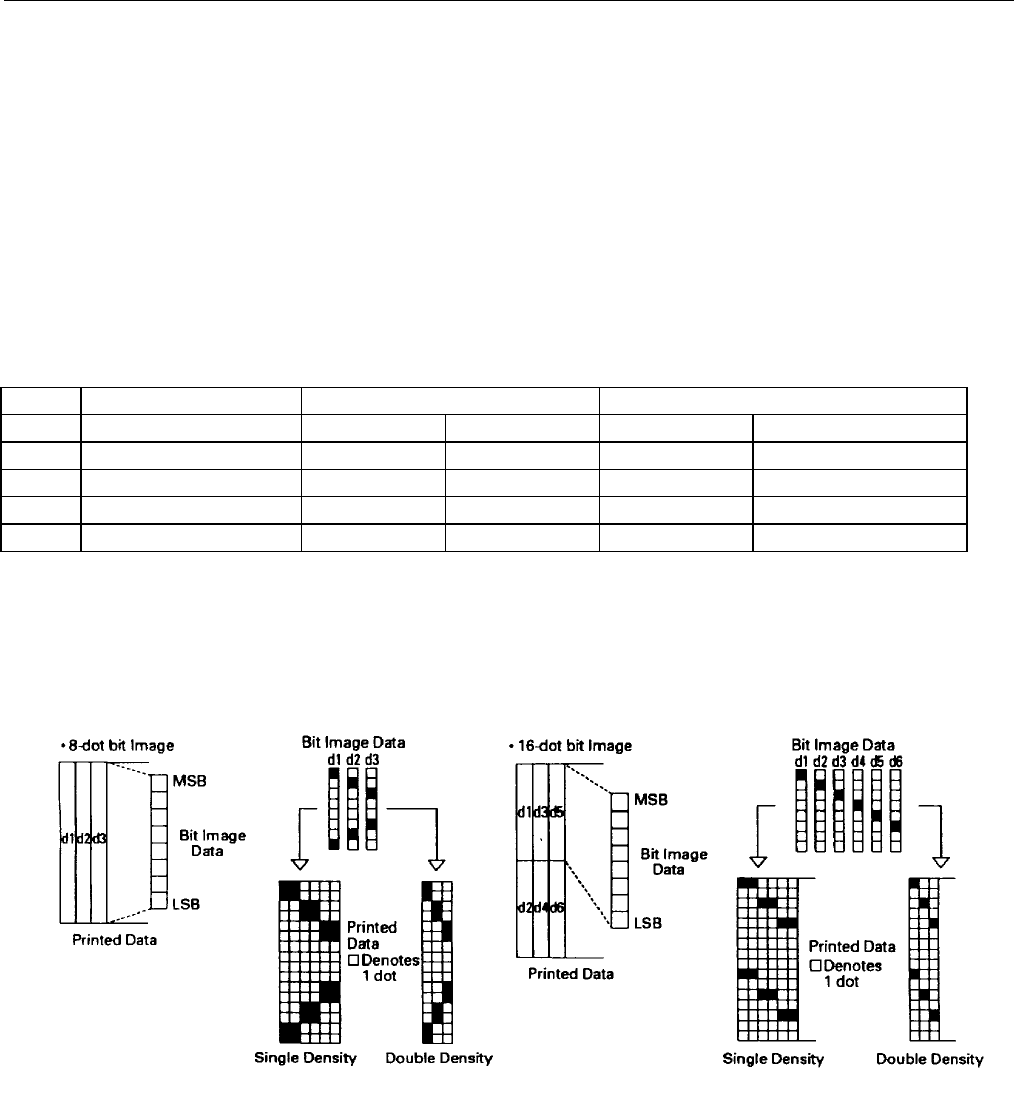

The relation between bit image data and printing dots are shown below.
