iDP-3210 User’s Manual
48/67 CITIZEN
(7) Defining Download Character (ESC & s n m a (D1D2 ~Dn)
Code: [1B]h + [26]h + s +n +m +a +Dn
* {s = 02}
{20 (Hex) is less than or equal to n is less than or equal to 7E (Hex)}
{20 (Hex) is less than or equal to m is less than or equal to 7E (Hex)}
{0 is less than or equal to a is less than or equal to 0A (Hex)}
Defines the font of download characters of alphanumeric characters.
• "s" indicates the number of bytes in vertical direction.
• "n" indicates the start character code and “m” indicates the end character code. To define only one
character, set n=m.
• Character codes definable includes 95 ASCII codes in total between <20>H~<7E>H.
• "a" indicates the number of dots in horizontal direction for definition.
• Dn is the data to be defined, which indicate a pattern equal to "a" dot in horizontal
direction from the left end. The rest of the pattern on the right side is filled with space.
• Download characters thus defined remain valid until redefinition, ESC @ execution,
GS * execution, or power OFF is practiced.

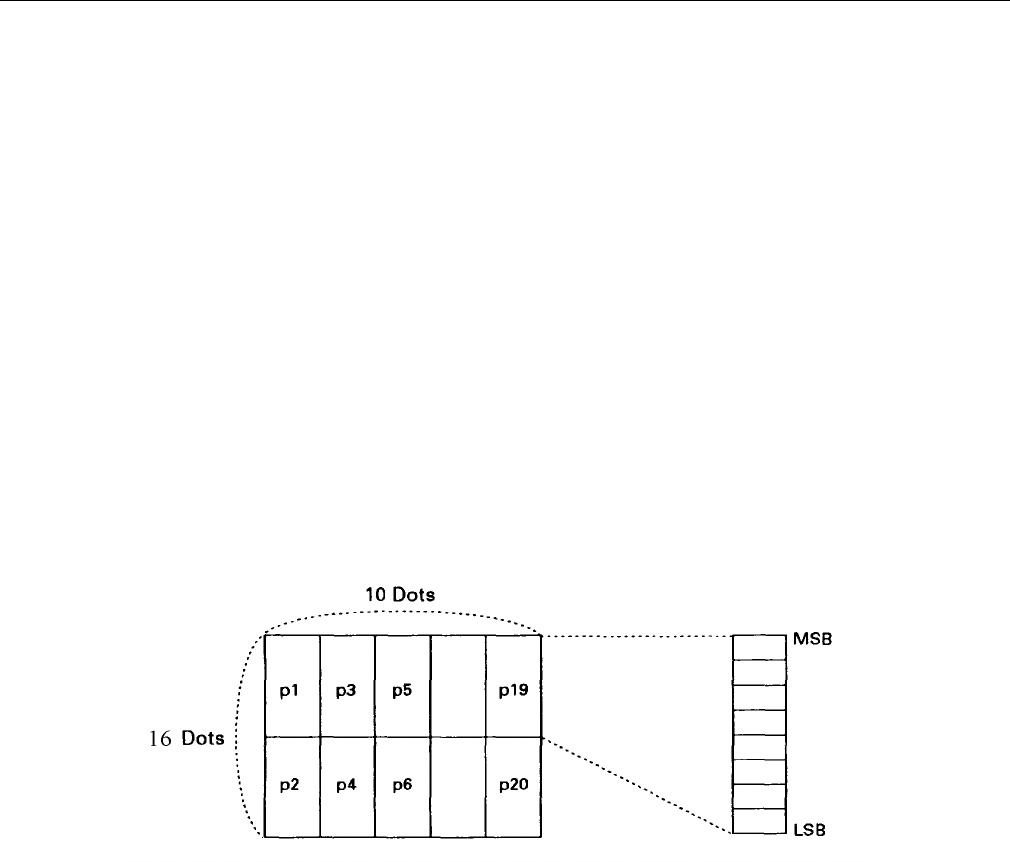

Example
