Enfora Enabler II-G Assisted GPS
Modem Integration Guide

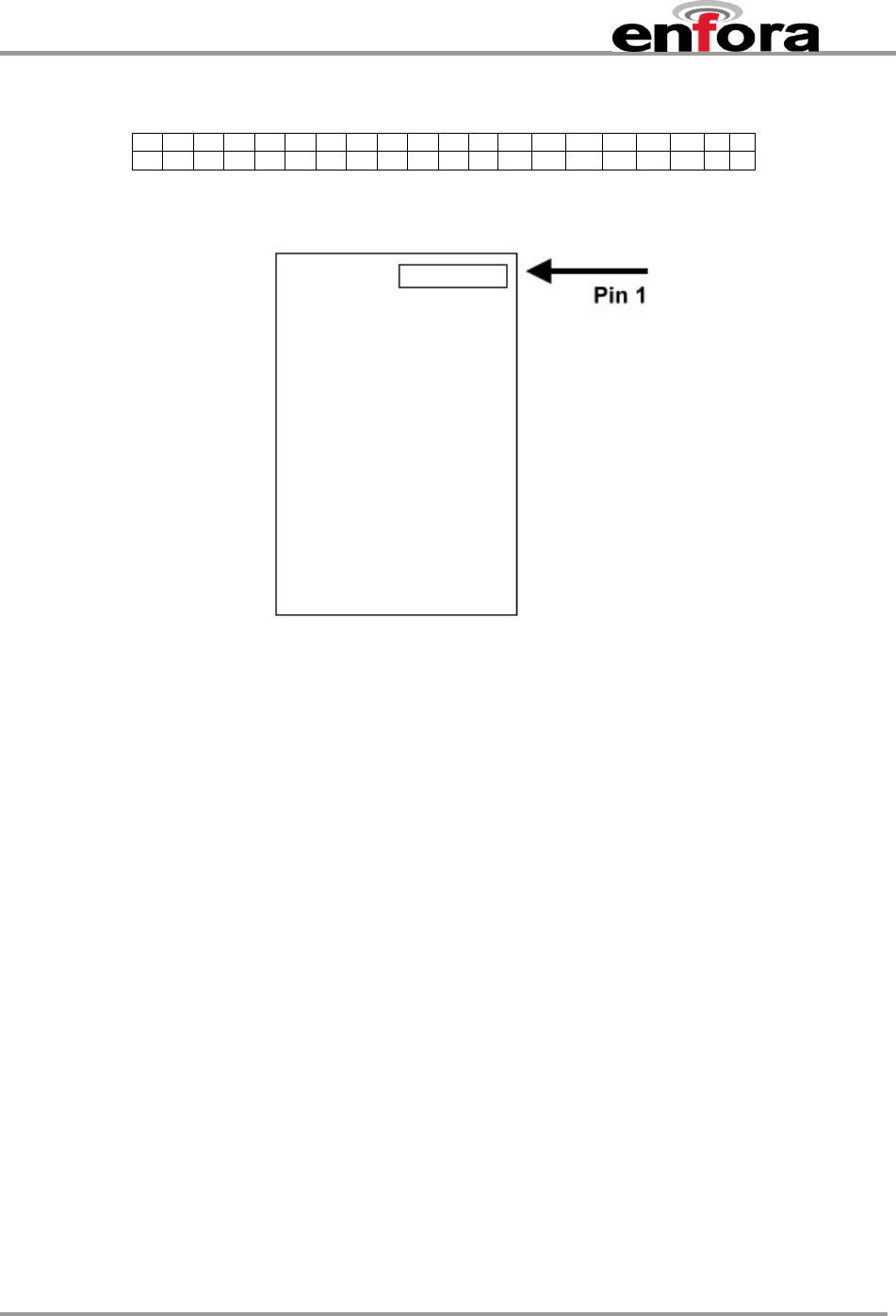

6.2. Module Pin Orientation Reference
59 . . . . . . 25 23 21 19 17 15 13 11 9 7 5 3 1
60 . . . . . . 26 24 22 20 18 16 14 12 10 8 6 4 2
Figure 6 Module Pin Orientations
6.3. Connectors
6.3.1. Enabler II-G A-GPS I/O Control Connector
The connector used to interface to the host is a 60-pin, SMT, Dual Row, Vertical Stacking:
.50MM (.020") Pitch Plug; Molex part number 53729-0604.
6.3.2. PCB Integration I/O Control Connector
The mating connector for a board mount application is a 60-pin, SMT, Dual Row, Vertical
Stacking: .50MM (.020") Pitch Receptacle; Molex part number 52974-0604.
MLG0208PB001 22 Version1.01 – 10/3/2006
