28 Setting Up the Projector
Connecting a Component Video Source
If your video source has component video connectors, you can use
them to project a higher quality video image. You’ll need a
component video cable, which can be purchased from Epson (part
number ELPKC19). See page 13 for ordering information.
Before starting, make sure the projector and your DVD player or
other video device are turned off.

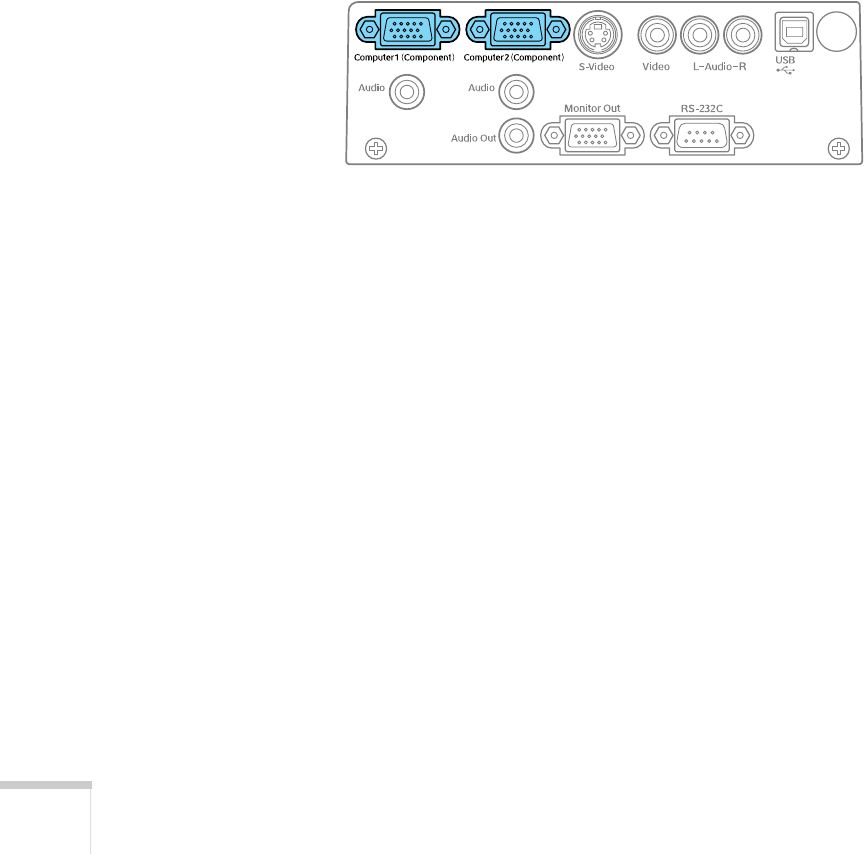

1. Connect the large end of the component video cable to the
projector’s
Computer1(Component) or
Computer2(Component) port.
2. Insert the three ends of the component video cable into the
R, G, and B ports on your video source.
3. To play sound through the projector, follow the instructions
beginning on page 29.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 32 for instructions.
If more than one device is connected to your projector, select
Computer1 (Component Video) or Computer2 (Component
Video)
as the source, depending on which port you used by pressing
the Source Search button on the projector or the
Comp1 or Comp2
button, depending on which port you used, on the remote control.
See page 34.
