Removal and Replacement Procedures
Maintenance and Service Guide 5–49

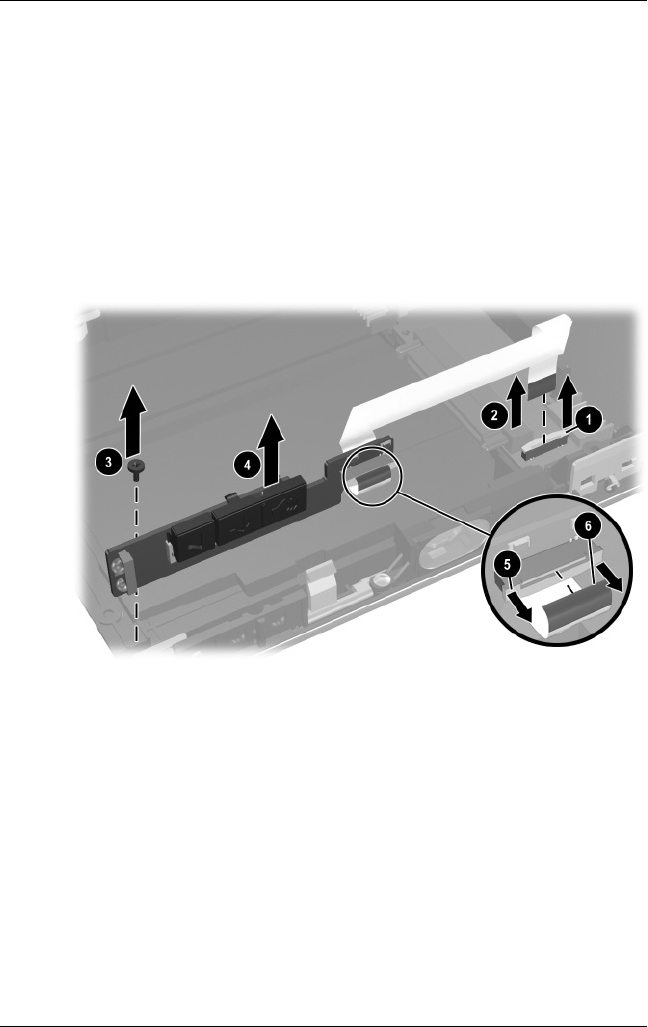

3. Release the ZIF connector 1 on the system board to which
the LED board cable is attached, and then disconnect the
cable 2.
4. Remove the PM1.5x4.0 screw 3 that secures the LED board
to the base enclosure.
5. Lift the board straight up to remove it 4.
6. Release the ZIF connector 5 on the LED board to which the
LED board cable is attached and disconnect the cable 6.
Removing the LED Board
Reverse the above procedure to install the LED board.
