- 39 -
Care must be exercised when inserting and removing these 50-
pin connectors. The connecting pins are rather fragile. Follow
the rules below when handling these connectors.
1. Never force the connector in and out.
2. Make sure that the connectors are properly aligned before
inserting.
3. Do not remove a connector from the socket by pulling on
the cable. Instead use a small screwdriver to pry each of
the sides out, a little at a time.
This connector is similar to the connector on the back of the
internal-mount scanner.
5.7 Setting Up a SCSI Chain with the
Scanner

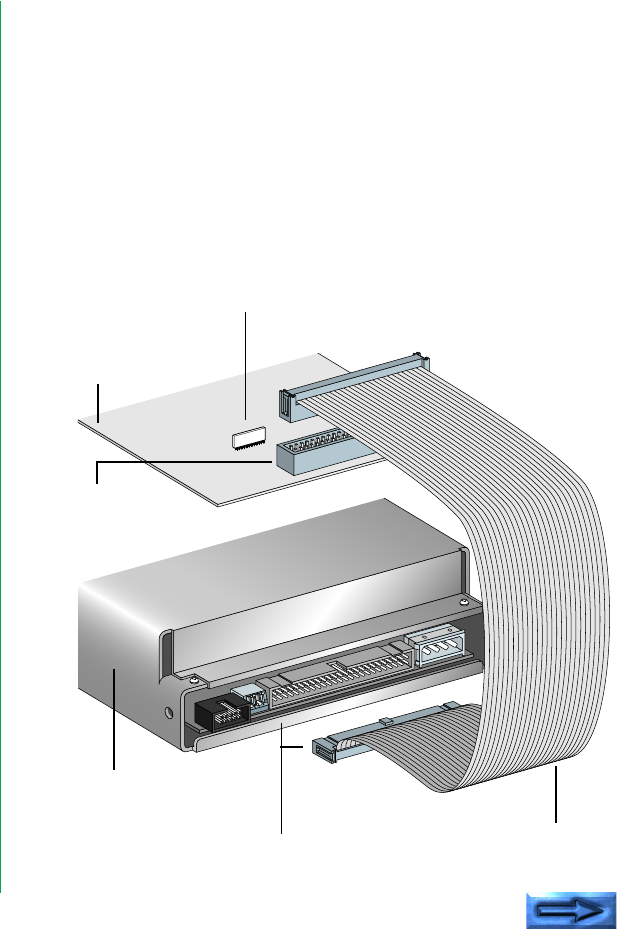

The internal-mount scanner is equipped with one SCSI 50-pin
connector. When the scanner is connected as the only other
device on the chain, or as the last device on the chain, the
connector of the 50-pin cable will end at the scanner. This case
is shown below.
Scanner
Computer internal SCSI
termination set
Computer SCSI
controller
Computer SCSI
connector
SCSI cable
Insert terminator between
these connectors
