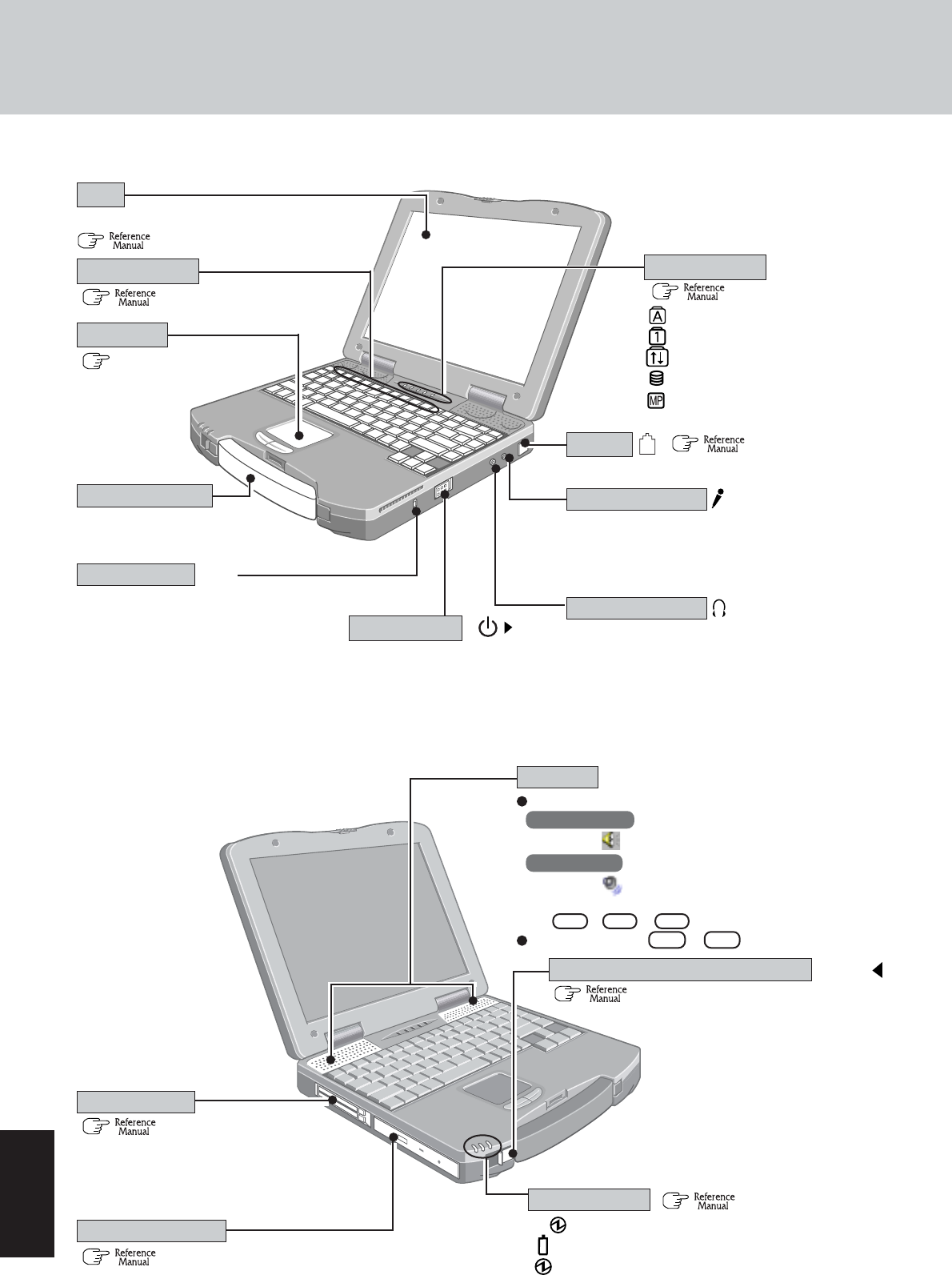

Names and Functions of Parts
( “LED Indicators”)
Before using the computer for
the first time, carefully read the
[Limited Use License Agree-
ment]. If you agree to the con-
ditions, remove the seal.
Security Lock
To adjust the volume*:
Windows 2000
Select the on the taskbar, then [Volume Control].
Windows XP
Select the on the taskbar.
* You may also use the function keys to perform this operation
( Fn + F5 or F6 ).
Speaker on/off : Fn + F4
Speakers
( page 17)
Use this connector to connect headphones or ampli-
fier-equipped speakers. Audio output from the in-
ternal speaker is disabled when headphones or ex-
ternal speakers are connected.
Headphone Jack
Microphone Jack
Use only a monaural condenser microphone.
Using an input source other than a monaural con-
denser microphone may not allow audio to be input
or may damage the equipment.
The illustrations shown may differ from the actual physical appearances.
( “PC Cards”)
PC Card Slots
( “Modem”)
Multimedia Pocket
( “Multimedia Pocket” and “CD Drive”)
Carrying Handle
( “Multimedia Pocket”)
Multimedia Pocket Release Latch
For enhanced portability and
in-the-field efficiency.
LED Indicators
A cable can be connected to prevent
theft of your computer. For more
information, read the manual that
comes with the cable.
LOCK
( “LED Indicators”)
Power Switch
Caps Lock
Numeric key (NumLk)
Scroll lock (ScrLk)
Hard disk drive status
Multimedia pocket device status
Power status of the multimedia pocket
Main battery pack status
Power status
MP
MP
RELEASE
Modem
LED Indicators
LCD
Function Keys
Touch Pad
( “Key Combinations”)
(Only for models with touchscreen:
“Touchscreen”)
