10

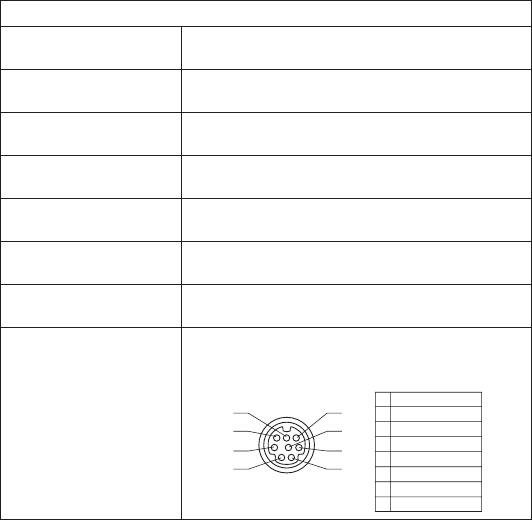

Description of Dock Controls, Connectors, and Mounting Connections
Control/Connector/
Mounting Connection
Description
Radio Adapter
Mounting Hole
The Radio Adapter is secured to the dock by attach-
ing it with a screw (D) to this hole.
Dock
Mounting Hole
The dock can be mounted to a flat surface in the
vehicle by using a screw (B) through this hole.
Radio Release Button
Pressing this button releases the SIRIUS radio from
the dock.
Radio Adapter
Alignment Holes
Tabs on the radio adapter align with these holes for
correct placement in the dock.
Sirius Universal Docking
Connector
This connector plugs into the bottom of the SIRIUS
radio.
Antenna Connector
The SIRIUS magnetic vehicle antenna is connected to
this connector.
SiriusConnect Interface
Connector
The SiriusConnect interface cable connects to this
connector. The other end of the DIN cable connects to
the headunit.
7
6
3
1
8
4
5
2
1
2
3
4
5
6
7
8
Battery
Power Enable
Serial Data (RX)
Ground
Audio Right
Serial Data (TX)
Audio Ground
Audio Left
DIN CABLE
PIN CONNECTIONS
