SUV/Mini-Van Antenna Cable Routing Procedure

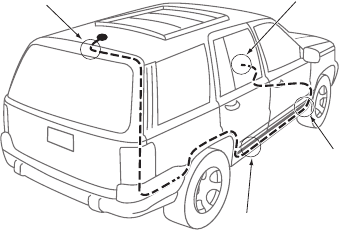

Figure 13 shows how the antenna cable should be routed from the antenna to the
dock in an SUV or a Mini-Van. The exact routing of the antenna cable may vary
depending upon where you have installed the dock in your vehicle. Avoid side airbag
locations on back pillars and above the doors. (Airbag locations are marked with
“SRS” logos.)
1. Feed Cable Under
Rubber Seal Around
Hatch Opening
3. Route Cable
Under Carpet
to Dashboard
4. Bring Cable Out To
SIRIUS
Radio
Location
2. Route Cable Under
Interior Trim, into
Cabin and Towards
Front of Vehicle
Figure 13Figure 13
