8 TASCAM US-1800
0USB port
Use the included USB cable to connect the unit to a
computer.
(Only compatible with USB 2.0.)
q DIGITAL IN (coaxial) jack
This coaxial digital input jack is compatible with the
IEC60958-3 (S/PDIF) standard.
wDIGITAL OUT (coaxial) jack
This coaxial digital output jack is compatible with
the IEC60958-3 (S/PDIF) and AES3-2003 (AES/EBU)
standards. This jack outputs the same signals as LINE
OUTPUTS 1/2 or LINE OUTPUTS 3/4. Set this using the
control panel. The digital signal format can also be set
using the control panel.
NOTE
This unit’s DIGITAL IN and OUT jacks can input and output
signals at 24-bit/96 kHz.
eMIDI OUT connector
This standard 5-pin DIN connector can be used to
output MIDI signals.
rMIDI IN connector
This standard 5-pin DIN connector can be used to
input MIDI signals.
tINPUTS (BALANCED) jacks and LEV switches
INPUTS (11-14) are standard TRS balanced input jacks.
Use the LEV switches to set the nominal level to either
–10 dBV (−10) or +4 dBu (+4).
NOTE
The gain of these jacks cannot be adjusted.
yLINE OUT (BALANCED) jacks (1-4)
These standard TRS jacks are balanced analog line
output jacks. The nominal output level is +4 dBu. These
jacks output signals sent from a computer to the unit
by USB. Use the audio application on the computer to
set which signals to output. Connect these outputs to
an external mixer, recorder or other device.
(Tip: HOT, Ring: COLD, Sleeve: GND)
uMONITOR (BALANCED) jacks (L/R)
These standard TRS jacks are balanced analog jacks
that output the monitoring signals. These can output
both a mono mix of signals from the unit inputs
(1-14) and the signals output from the computer for
monitoring. Use the MIX knob on the front panel
to adjust the balance of these two sources. Use the
MONITOR knob on the front panel to adjust the output
level.
Connect these jacks to monitor speakers, for example.
(Tip: HOT, Ring: COLD, Sleeve: GND)
iCord holder
Loop the cord of the included TASCAM PS-1225L
AC adaptor here to prevent the plug from being
disconnected accidentally.
oDC IN 12V jack
Connect the included TASCAM PS-1225L AC adaptor
to this Jack.
2 − Names and Functions of Parts

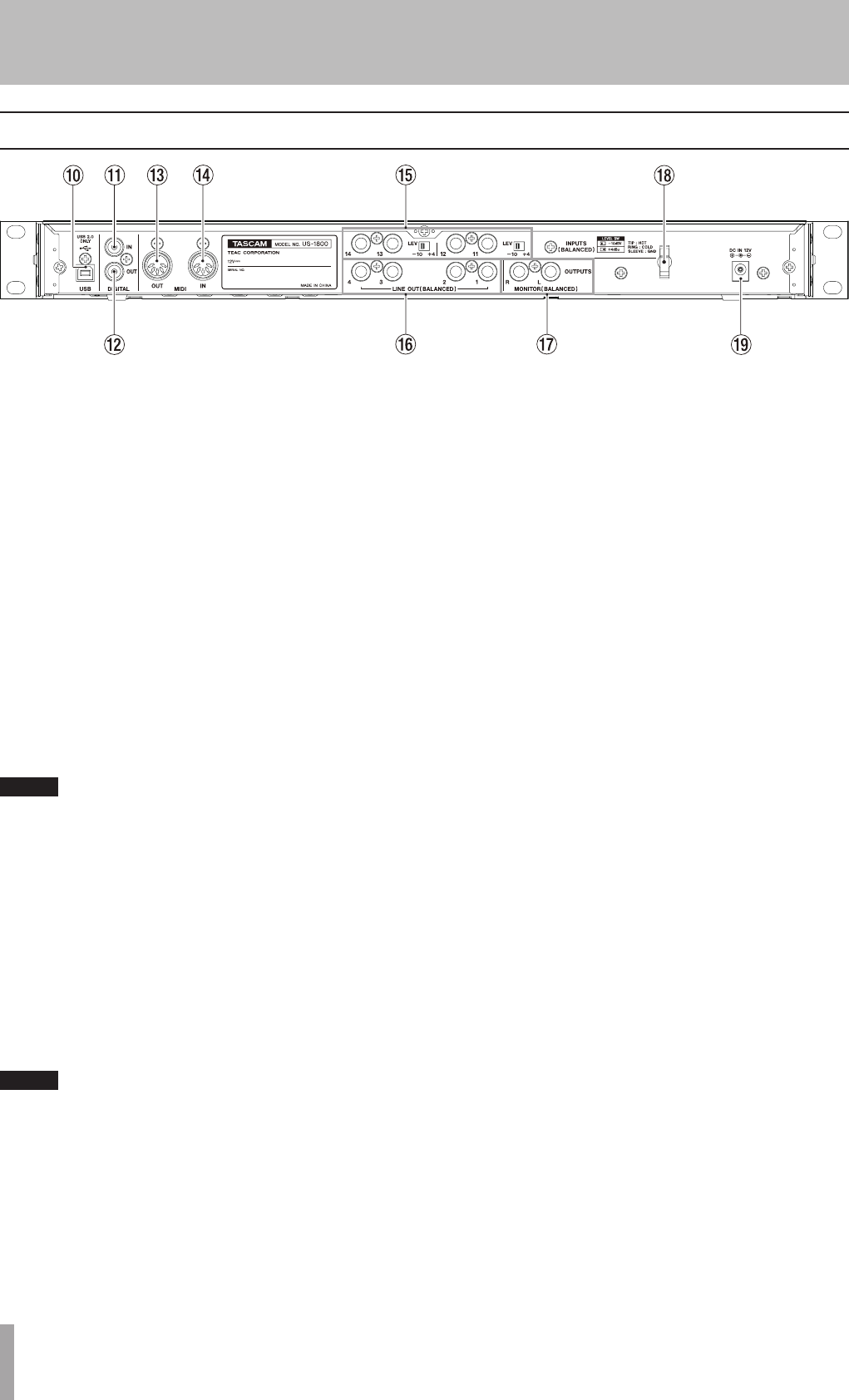

Rear panel
