Error!UsetheHometabtoapply2tothetextthatyouwanttoappearhere.Error!Usethe
Hometabtoapply2tothetextthatyouwanttoappearhere. 4ReplacementProcedures
SatelliteL500DMaintenanceManual 4-51

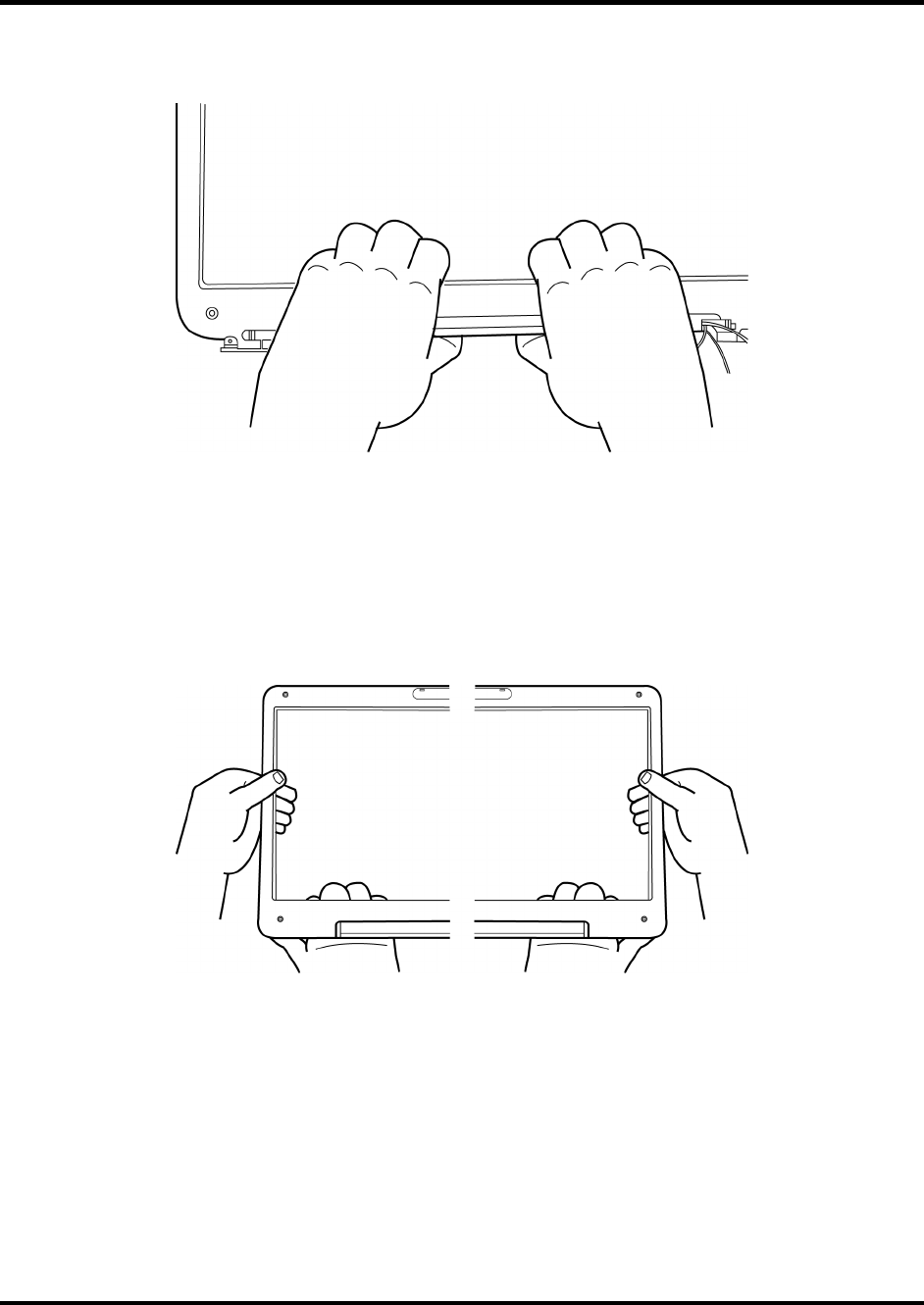

2. TakeoutthebezelhingewallfromthecoverhingewallasshowninFigure4.32.
Figure4.32Takingoutthehingewall
3. Pullapartthelowerhalfofthebezel;leavethisportionabovetheleftandrightLCD
hinge.
4. PushthebezelfromtheleftandrightsideasshowninFigure4.33andremovethebezel
fromthedisplayassembly.
Figure4.33Removingthebezelfromthehingewall
