Replacing the Drum Cartridge
8-23
Maintenance
8
Do not touch the electrical contacts or gears in the cartridge cover, as this may
result in an electric shock.
IMPORTANT
Use only a drum cartridge intended for use with this machine.
The inner portion of the machine must be cleaned when replacing the drum cartridge,
therefore, have a soft, dry cloth available.
1

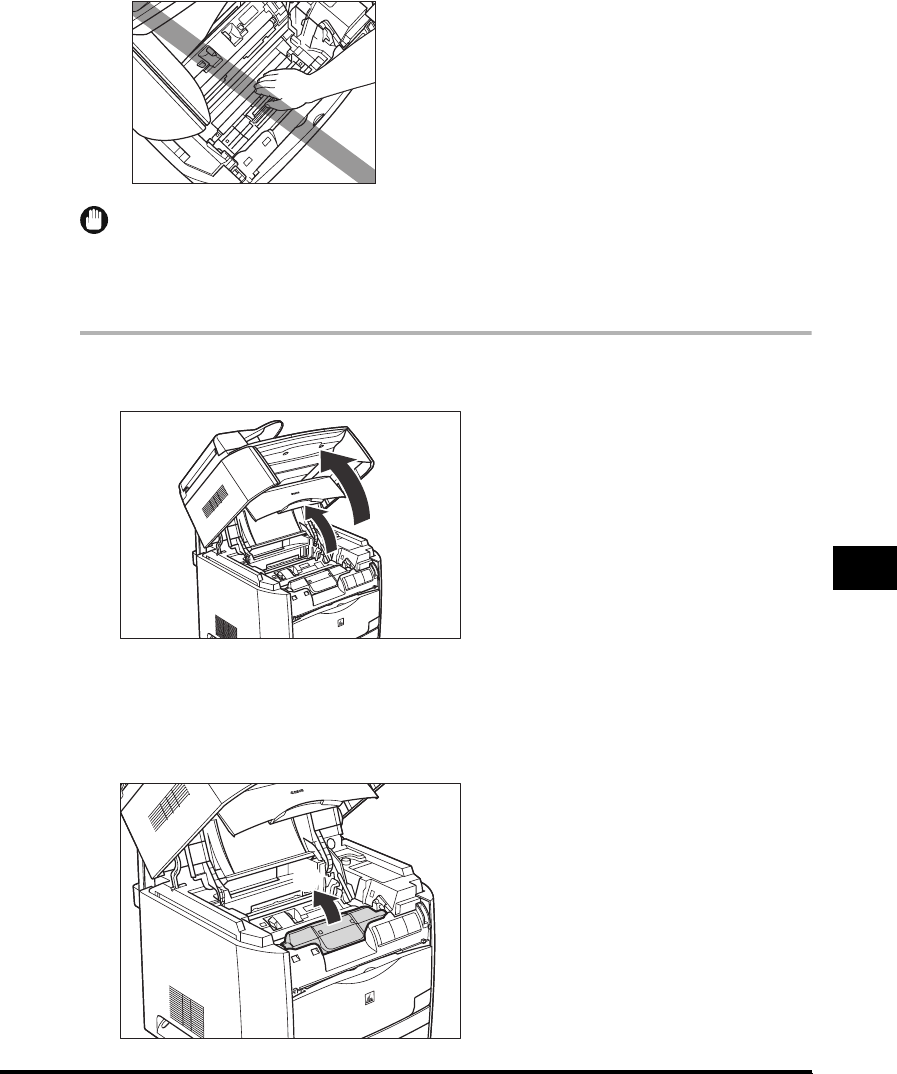

Lift the scanning platform and open the cartridge cover.
2
Remove the drum cartridge from the machine.
Pull up the green handle on the drum cartridge in the direction of the arrow a, and lift
the cartridge straight up b.
a
