Replacing the Drum Cartridge
8-27
Maintenance
8

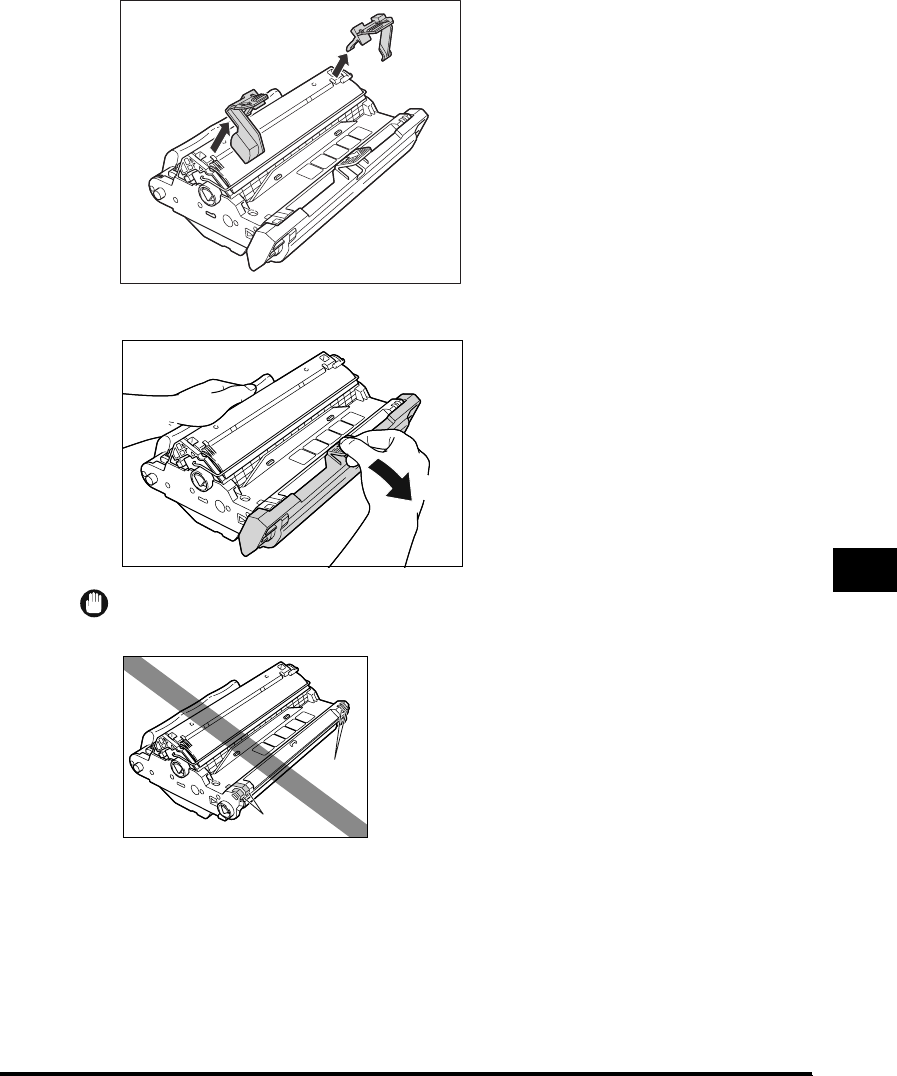

Remove the packing materials e and f by holding the grips and pulling them in the
direction of the arrows.
Hold the packing material g and remove it as shown in the figure.
IMPORTANT
Do not hold or touch the electrical contacts. It may result in damage to the machine.
e
f
g
Electrical
contacts
Electrical
contacts
