Replacing the Drum Cartridge
8-25
Maintenance
8
4

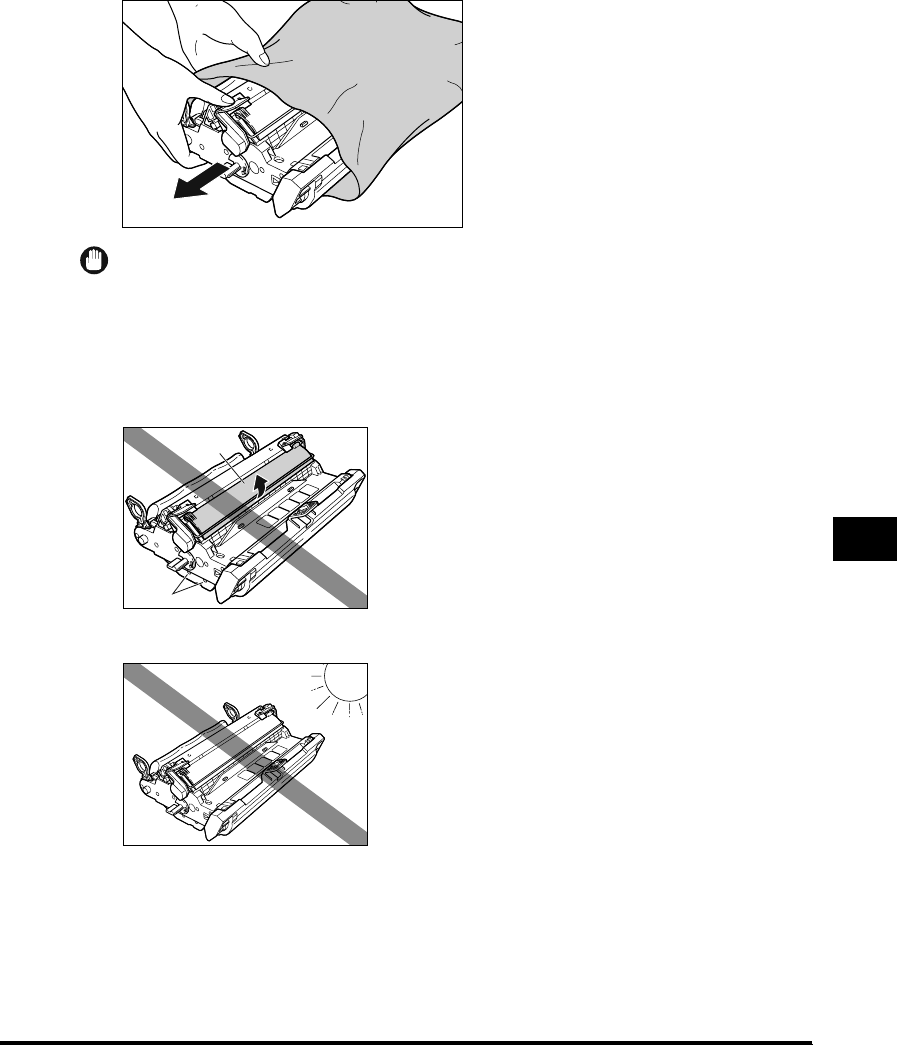

Take the drum cartridge out of the protective bag.
Open the protective bag with scissors, so as not to damage the cartridge.
IMPORTANT
Keep the protective bag in which the cartridge came in. It may be required when taking
out the drum cartridge for machine maintenance.
Print quality may deteriorate if you touch or damage the drum that is set inside. Be
careful not to touch the drum or open the drum protective shutter. Be careful not to hold
or touch the portions that are not described for this procedure such as the sensors. It
may result in damage to the machine.
Do not expose the drum cartridge to direct sunlight or strong light.
Sensors
Drum protective
shutter
