PPTP and L2TP VPN Configuring PPTP
FortiGate-400 Installation and Configuration Guide 237

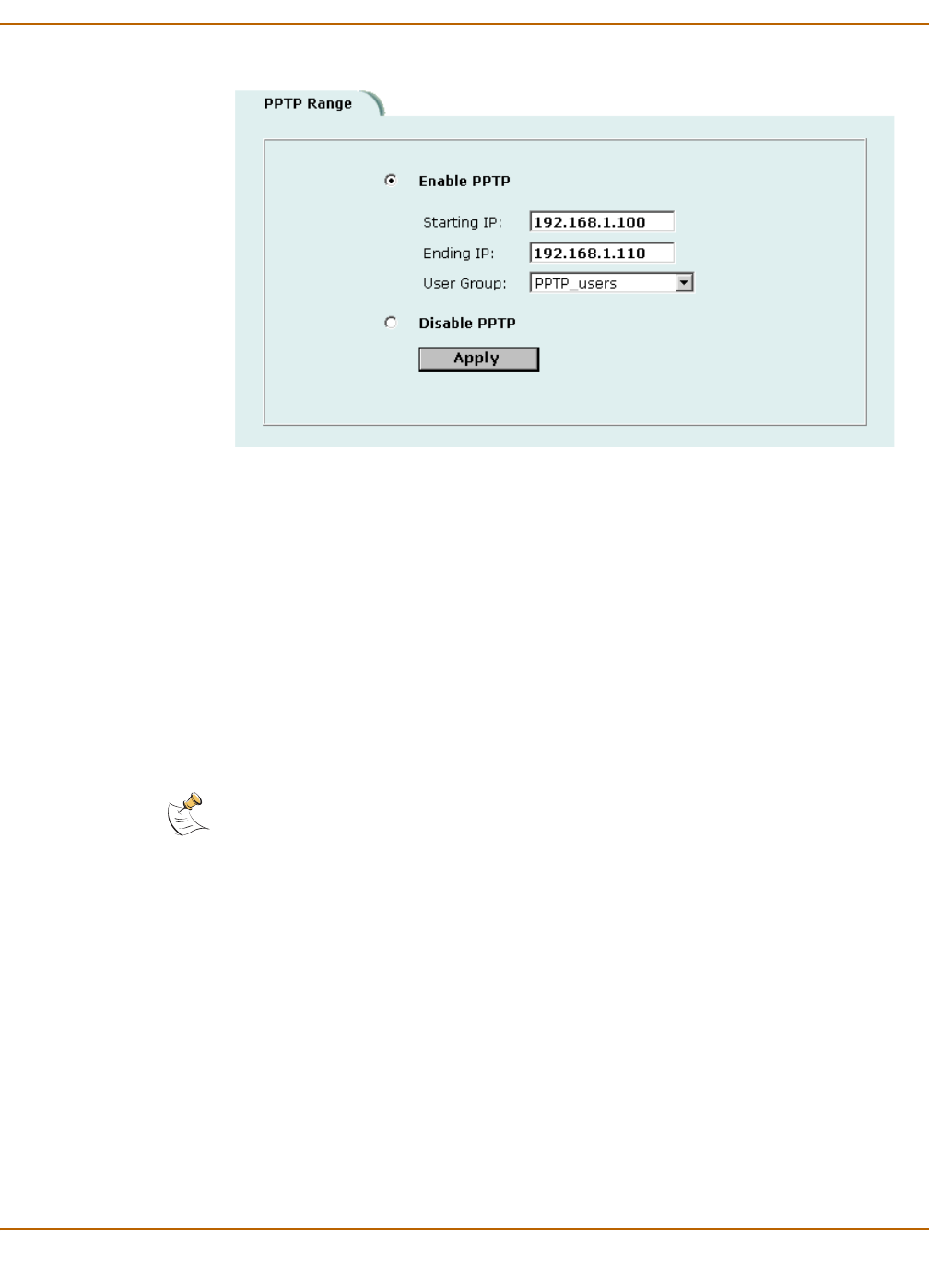

Figure 30: Example PPTP Range configuration
Adding a source address
Add a source address for every address in the PPTP address range.
1 Go to Firewall > Address.
2 Select the interface to which PPTP clients connect.
This can be an interface, VLAN subinterface, or zone.
3 Select New to add an address.
4 Enter the Address Name, IP Address, and NetMask for an address in the PPTP
address range.
5 Select OK to save the source address.
6 Repeat for all addresses in the PPTP address range.
Adding an address group
Organize the source addresses into an address group.
1 Go to Firewall > Address > Group.
2 Add a new address group to the interface to which PPTP clients connect.
This can be an interface, VLAN subinterface, or zone.
3 Enter a Group Name to identify the address group.
The name can contain numbers (0-9), uppercase and lowercase letters (A-Z, a-z), and
the special characters - and _. Other special characters and spaces are not allowed.
4 To add addresses to the address group, select an address from the Available
Addresses list and select the right arrow to add it to the Members list.
Note: If the PPTP address range is comprised of an entire subnet, add an address for
this subnet. Do not add an address group.
