NAT/Route mode installation Configuration example: Multiple connections to the Internet
FortiGate-400 Installation and Configuration Guide 53

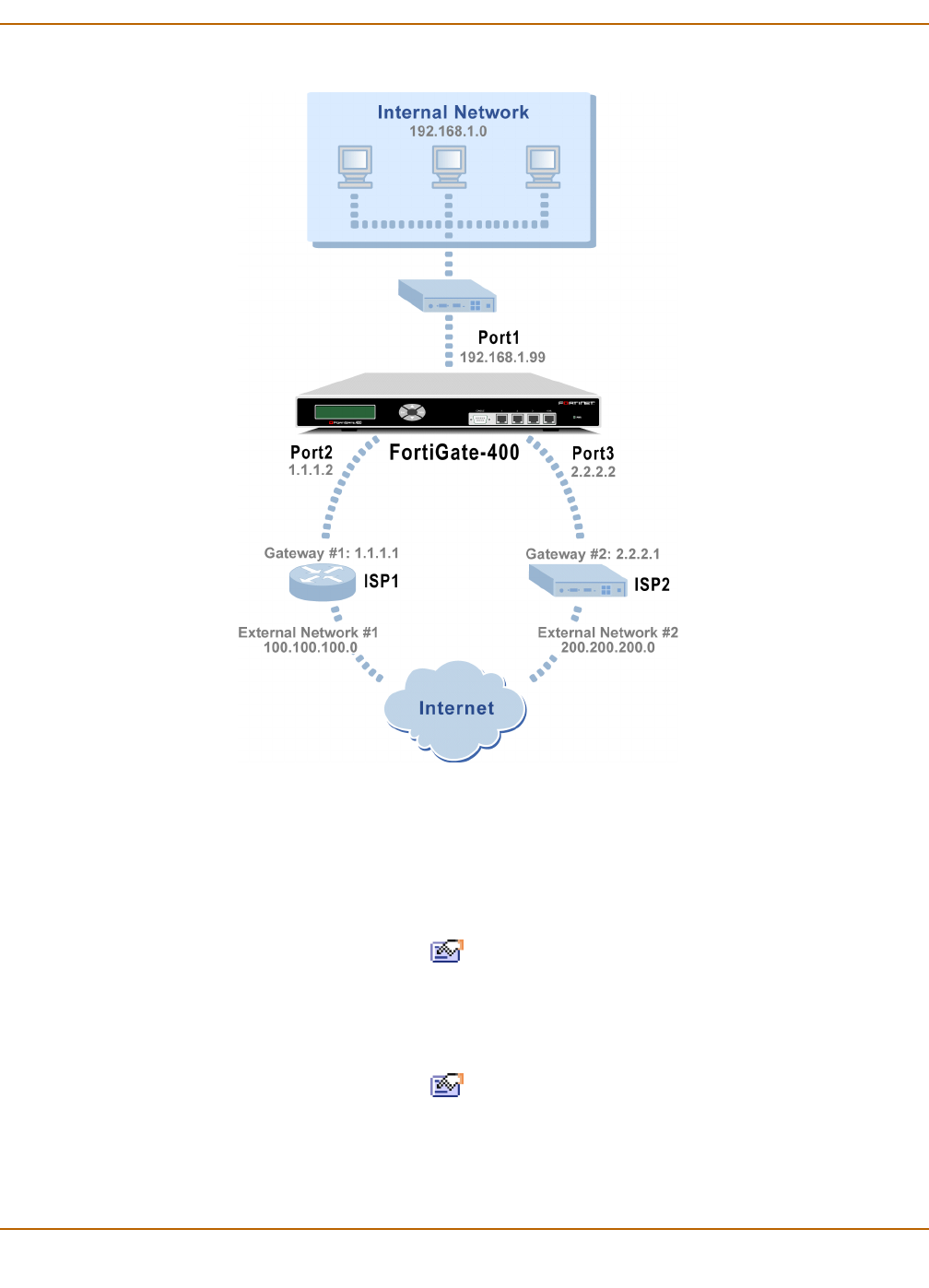

Figure 8: Example multiple Internet connection configuration
Configuring Ping servers
Use the following procedure to make Gateway 1 the ping server for port2 and
Gateway 2 the ping server for port3.
1 Go to System > Network > Interface.
2 For port2, select Modify .
Ping Server: 1.1.1.1
Select Enable Ping Server
•Select OK
3 For port3, select Modify .
Ping Server: 2.2.2.1
Select Enable Ping Server
•Select OK
