ADF cable
1. Remove the scanner rear cover. See Scanner rear cover on page 76.
2. Remove one screw (callout 1) from the metal cable retaining bracket and then remove the bracket.
1

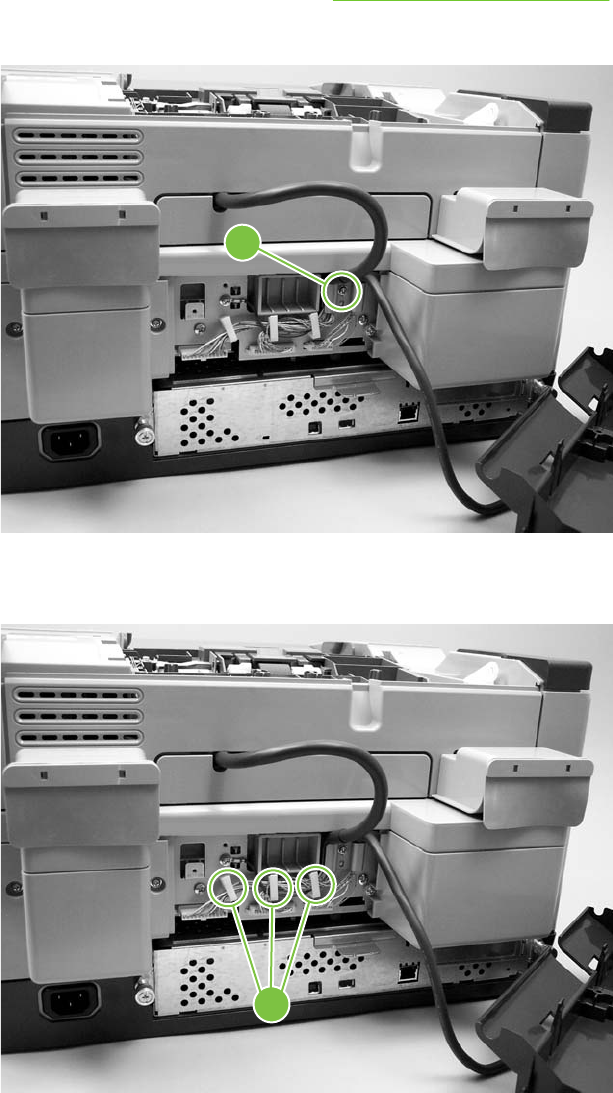

Figure 5-67 Removing the ADF cable (1 of 5)
3. Unclip three wire clips (callout 2) and release the wires.
2
Figure 5-68 Removing the ADF cable (2 of 5)
ENWW Internal components 89
