Device parts

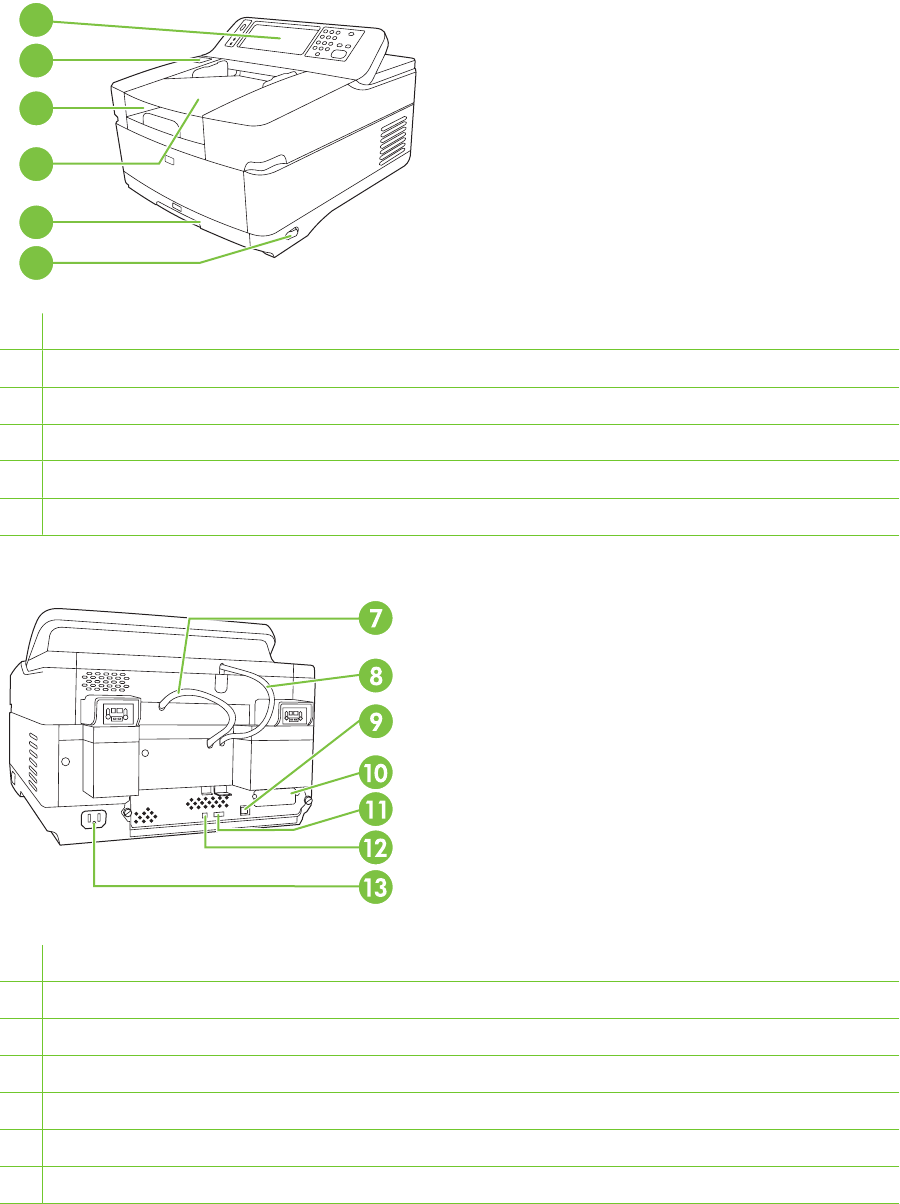

Before using the digital sender, familiarize yourself with its parts.
5
6
3
4
2
1
1 Control panel
2 Jam release button
3 Output bin
4 ADF input bin
5 Keyboard (pull to open)
6 On/off switch
7 ADF cable
8 Control-panel cable
9 10/100Base-T network port
10 EIO slot
11 USB host port (for third-party devices only)
12 USB device port (for firmware upgrades only)
13 Power connector
