4. Remove one grounding screw and wire (callout 3), and disconnect two connectors (callout 4).
3
4

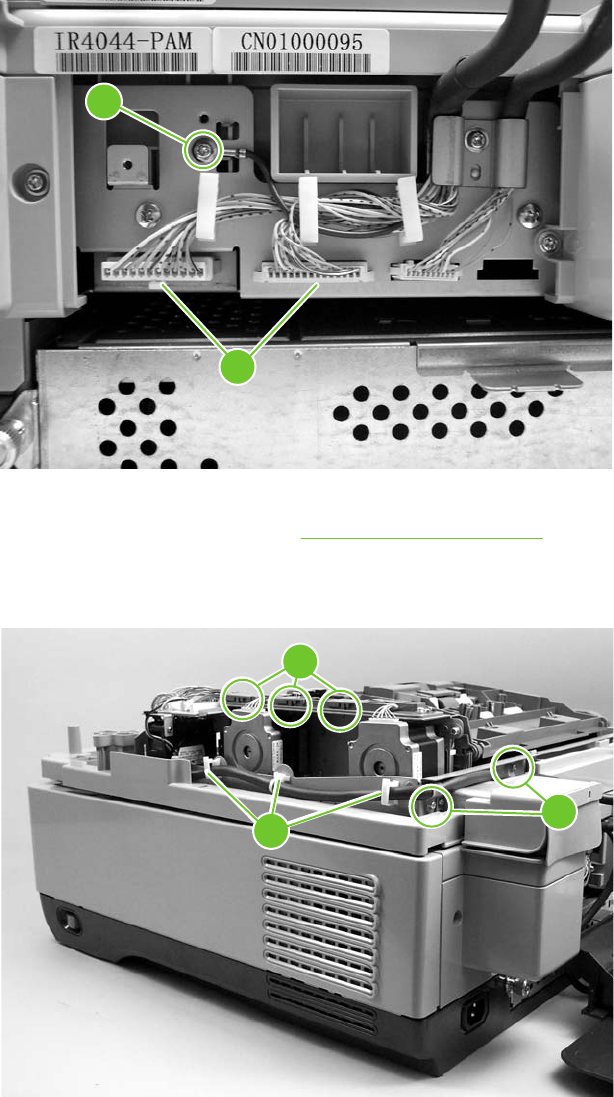

Figure 5-69 Removing the ADF cable (3 of 5)
5. Remove the ADF rear cover. See
ADF rear cover on page 72.
6. Remove two screws (callout 5), unclip three wire clips (callout 6), and remove three cable covers
(callout 7).
7
5
6
Figure 5-70 Removing the ADF cable (4 of 5)
90 Chapter 5 Removal and replacement ENWW
