Separation pad case
1. Remove the following items:
Paper input tray. See
Paper input tray on page 54.
ADF left cover. See
ADF left cover on page 69.
2. Remove one screw (callout 1).
1

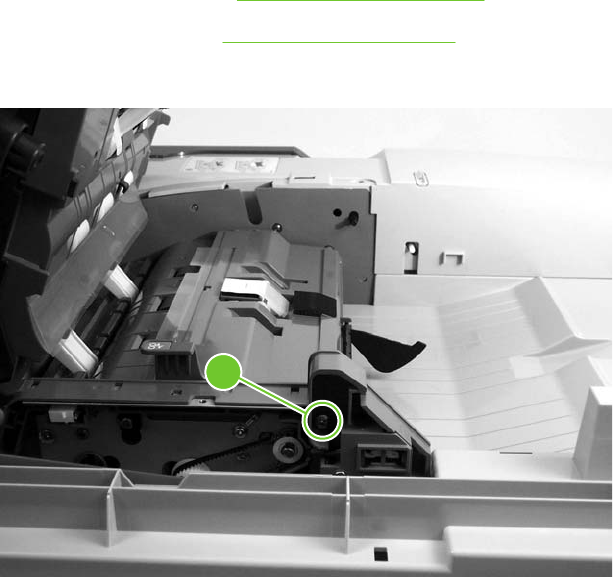

Figure 5-72 Removing the separation pad case
3. Slide the separation pad case to the right and lift up its left side in order to remove it.
92 Chapter 5 Removal and replacement ENWW
