Scanner rear cover
1. Remove one screw (callout 1).
1

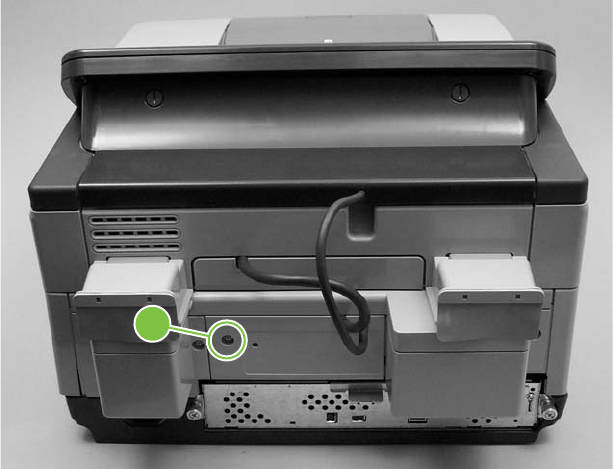

Figure 5-53 Removing the scanner rear cover
2. Remove the scanner rear cover by firmly pulling the cover toward you and slightly to the left. Slide
the scanner rear cover slightly left to clear the ridge on the right side.
