SCB cable
1. Remove the flatbed unit. See Flatbed scanner assembly on page 96.
2. Use needle-nose pliers to remove two connectors (callout 1). Unclip three wire clips (callout 2) and
remove one grounding screw and wire (callout 3).
1
2
3

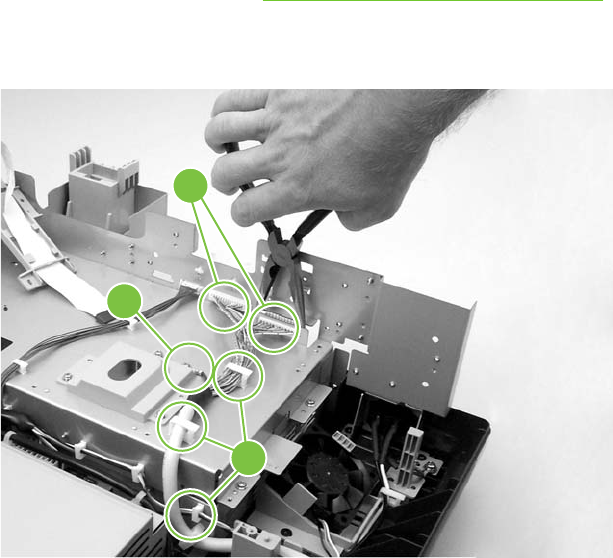

Figure 5-97 Removing the SCB cable
3. Remove the SCB cable.
ENWW Internal components 109
