16 Chapter 1
Introduction and Installation
Installation
5. Ensure there are at least two inches of clearance around the sides and back of the
test set or the system cabinet.

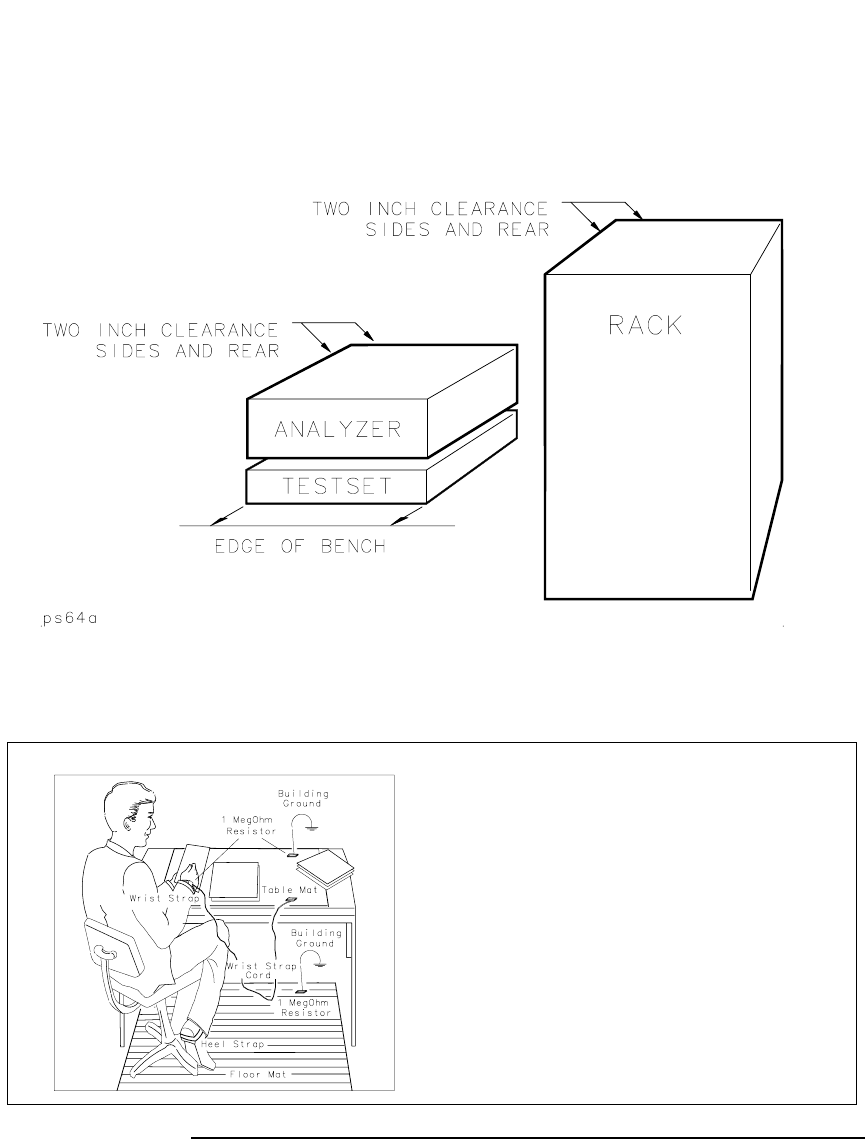

Figure 1-5 Ventilation Clearance Requirements
6. Set up a static-safe workstation. Electrostatic discharge (ESD) can damage or
destroy components.
• table mat with earth ground wire: part
number 9300-0797
• wrist-strap cord with 1 Meg Ohm
resistor:
part number 9300-0980
• wrist-strap:
part number 9300-1367
• heel straps:
part number 9300-1308
• floor mat
