138 - PowerBook G4 (12-inch) Take Apart
Inverter Board (and Antenna Cable Assembly)

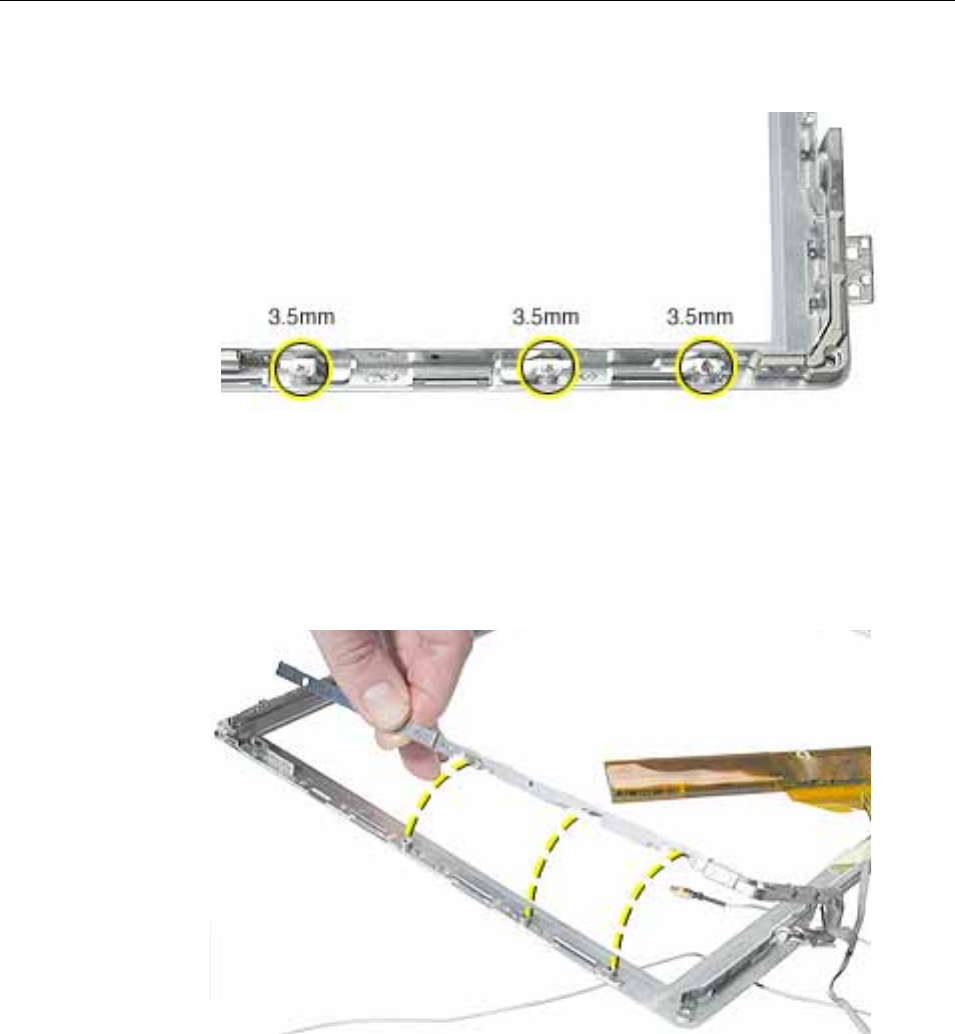

9. From the left side of the bezel, remove the three screws.
10. Important: In the following steps, note that because of the position of the bezel, the
designation of right and left differs. For example, the right hinge with bezel brace is
removed from the left side of the bezel because you are viewing the bezel from its
inner side. Likewise, the left hinge with bezel brace is removed from the right side of
the bezel.
Remove the right hinge with bezel brace from the left side of the bezel.
