ASUS A7V266-MX motherboard user guide
1-11
1.9 System memory
The motherboard has two Double Data Rate (DDR) DIMM sockets that supports
up to 2GB non-ECC PC2100/1600 DDR SDRAM DIMMs. Each DIMM socket is
two-sided. DIMMs come in combinations of single or double-sided types ranging
through 64MB, 128MB, 256MB, 512MB and 1 GB.

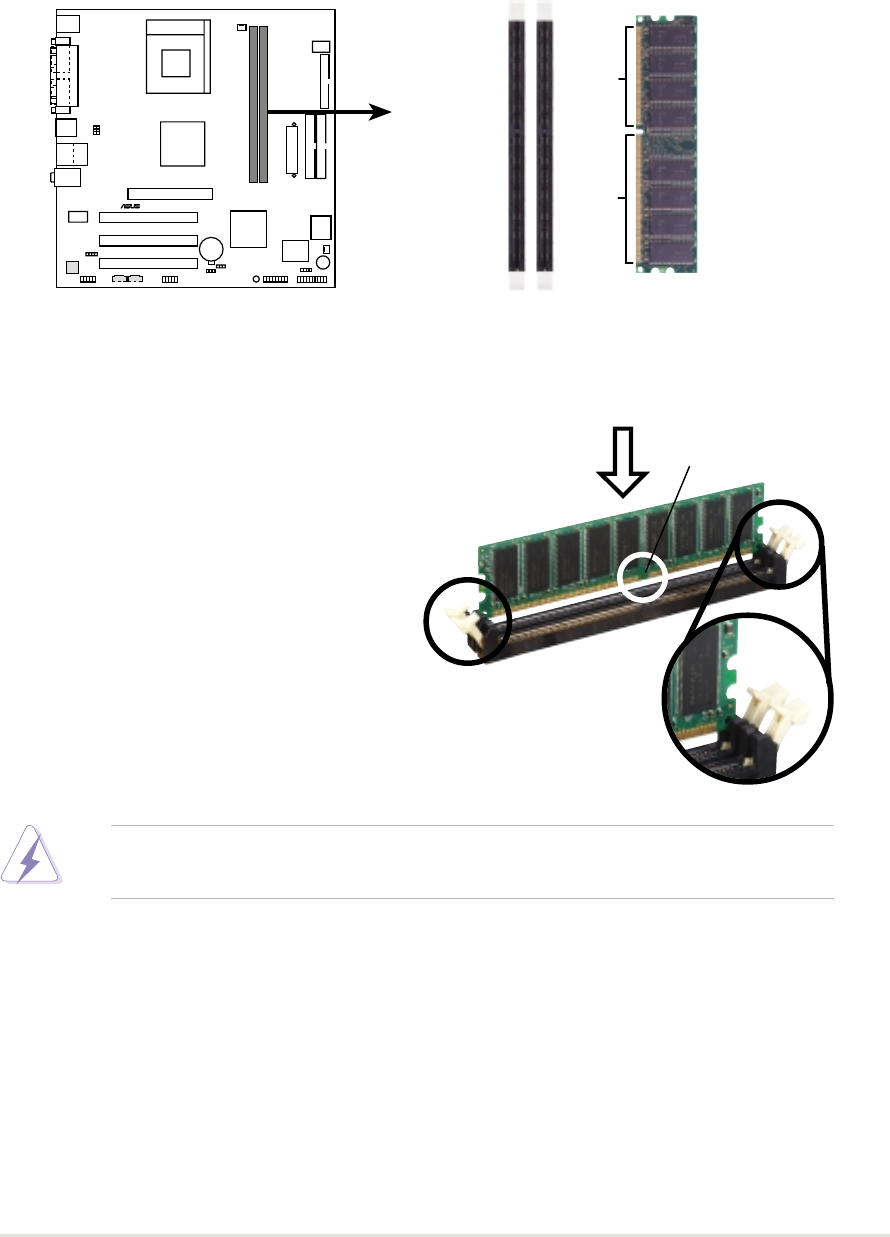

Installing a DIMM
1. Unlock a DIMM socket by pressing
the retaining clips outward.
2. Align a DIMM on the socket. Make
sure the notches on the DIMM
exactly match the notches in the
socket.
3. Firmly insert the DIMM into the
socket until the retaining clips lock
into place.
Unlocked Retaining Clip
DDR DIMM notch
A DDR DIMM is keyed with a notch so that it fits in only one direction. DO NOT
force a DIMM into a socket to avoid damaging the DIMM.
A7V266-MX
®
A7V266-MX 184-Pin DDR DIMM Sockets
80 Pins104 Pins
DIMM1
DIMM2
