ASUS A7V266-MX motherboard user guide
1-19

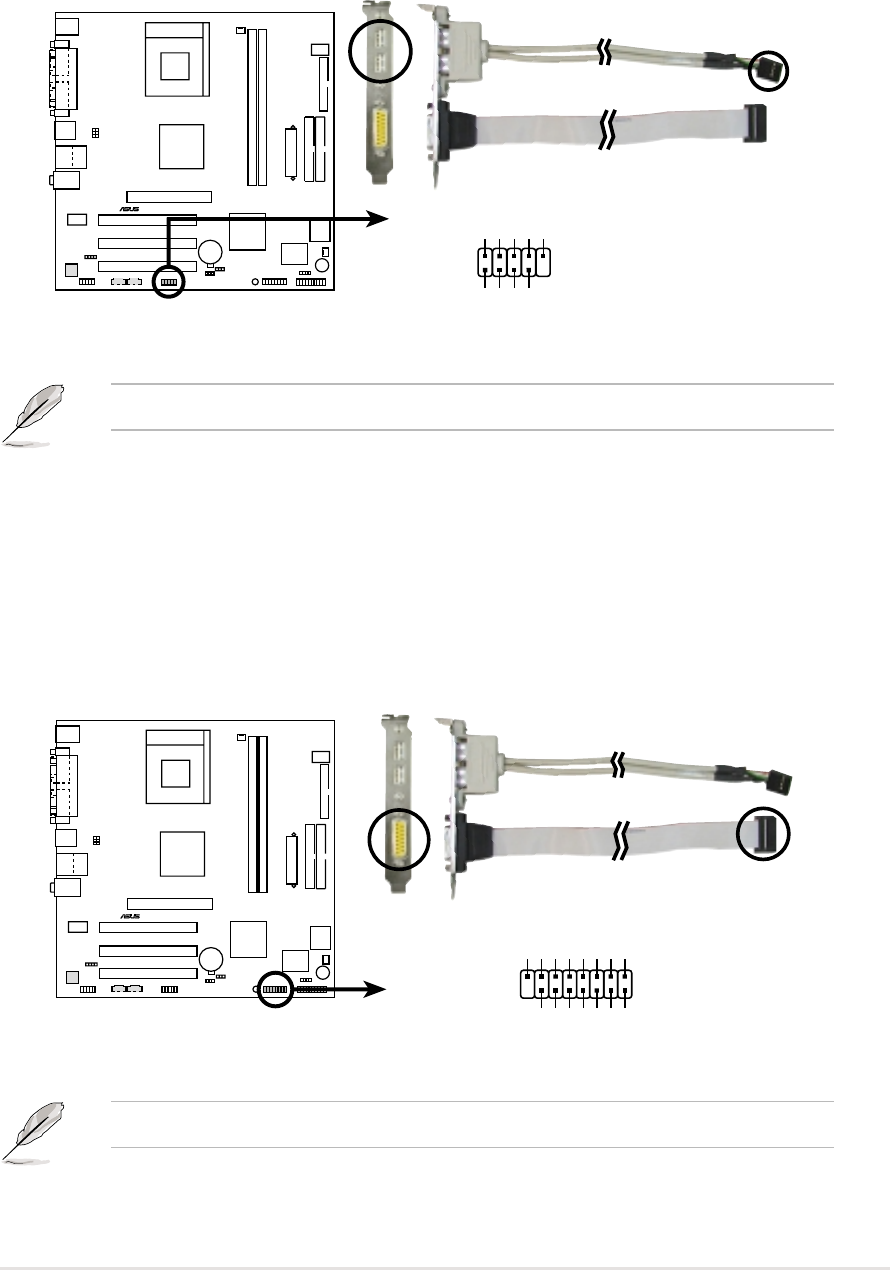

5. USB header (10-1 pin USB56)
If the USB 2.0 port connectors on the back panel are inadequate, a USB
header is available for two additional USB port connectors. Connect a 2-port
USB connector set to a USB header and mount the USB bracket to an open
slot in the chassis.
6. GAME/MIDI connector (16-1 pin GAME)
This connector supports a GAME/MIDI module. If your package came with the
optional USB 2.0/GAME module, connect the GAME/MIDI cable to this
connector. The GAME/MIDI port on the module connects a joystick or a game
pad for playing games, and MIDI devices for playing or editing audio files.
A7V266-MX
®
A7V266-MX USB Connectors
USB56
USB+5V
USB_P6-
USB_P6+
GND
NC
USB+5V
USB_P5-
USB_P5+
GND
1
A7V266-MX
®
A7V266-MX Game Connector
GAME
+5V
+5V
J2B1
J2CX
MIDI_OUT
J2CY
J2B2
MIDI_IN
J1B1
J1CX
GND
GND
J1CY
J1B2
+5V
The USB connector module is not included in this motherboard package.
The GAME port module is not included in this motherboard package.
