PFWX-51B/PFWU-51B 10/02/2014
31
4.Projector Parts and Functions

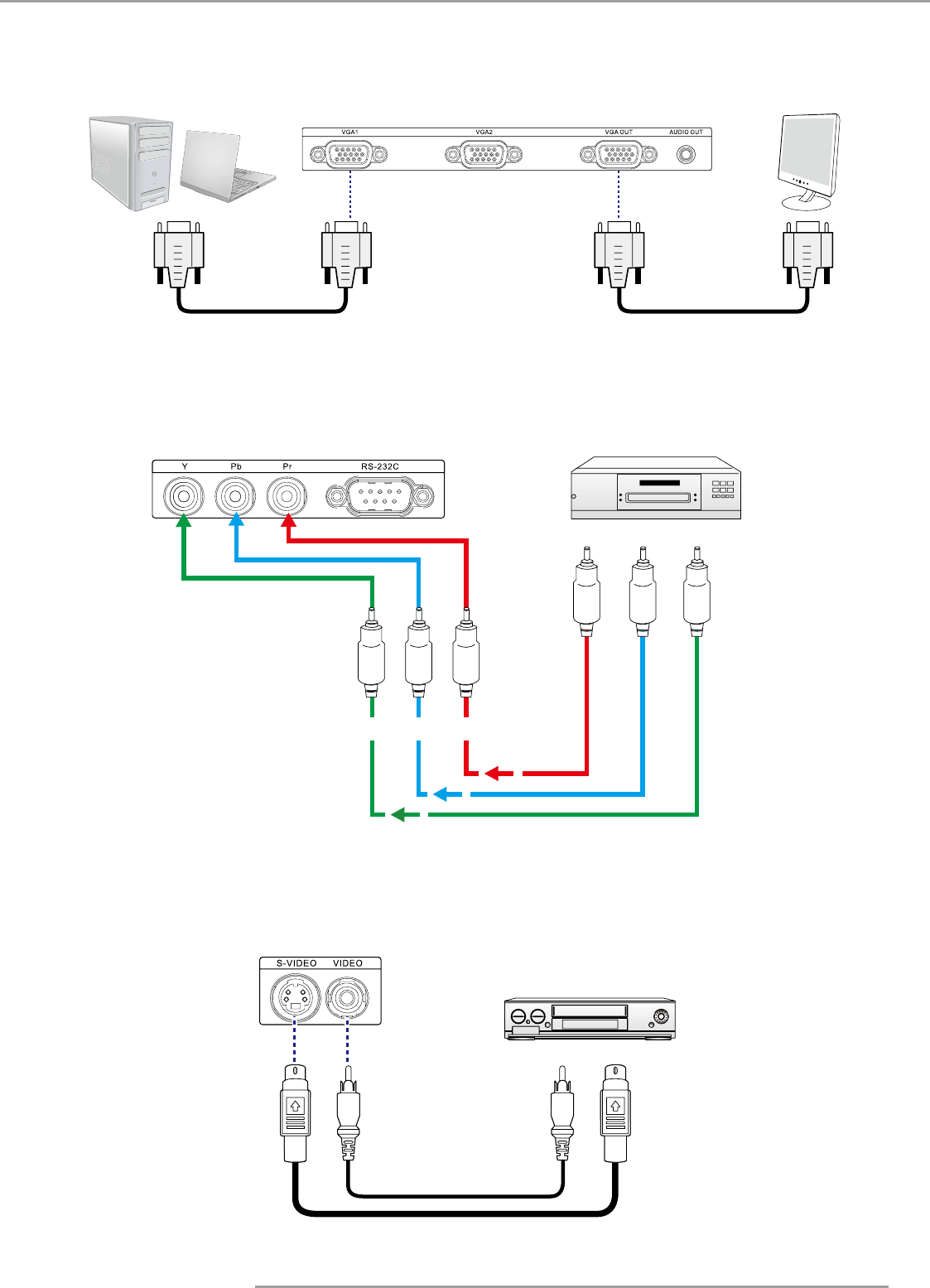

VGA OUT (Loop thru only for VGA1)
Connect the 15-pin D-sub cable and connect one end to the projector's VGA out port. Connect the other end to a monitor to
use the loop-through function.
YPbPr connection
Take the 3 cabled RGB component video connectors from the source equipment to the projector’s jacks.
DTV set-top-box or other component
(YPbPr) input source
Y Pb Pr
S-VIDEO/VIDEO
If the image input device offers both S-Video and Video connection, it is recommended that you choose S-Video to obtain
better image quality. If both the S-Video and Video inputs are connected to the projector, the projector will prioritize SVideo
signal input and image from the Video input will not be played.
