3. Installation requirements
3.1 Mechanical requirements for the SF-10V display
Support structure
The support structure can be provided and installed by the customer because they vary from system to system. Although, the
following must be taken into account and must be precisely calculated on individual basis:
1. Weight tolerances : Ensure that the support structure and the floor on which or the wall against which the support structure
has to be installed, is able to handle the complete weight of the SF-10V display.
2. Environmental conditions : Humidity, wind, temperatures, rain, salty etc.
3. Location : Outdoor, altitude, etc.
4. G round stability
5. F ront clearances : For optimal impact ensure that there is sufficient free area in front of the SF-10V display and respect the
maximum viewing distance.
6. Local regulations regarding such installations
WARNING: Never construct a SF-10V display if there is uncertainty reg arding the stability of an installation
or the load holding capabilities. If there are doubts on a systems viability, consult Barco for advice on profes-
sional rigging organizations.
Individual basis
Support structures must be assessed on an individual basis. Never construct a wall if there is uncertainty regarding the stability of
an installation or the load holding capabilities. If there are doubts on a system’s viability, consult Barco for advise on professional
rigging organizations.

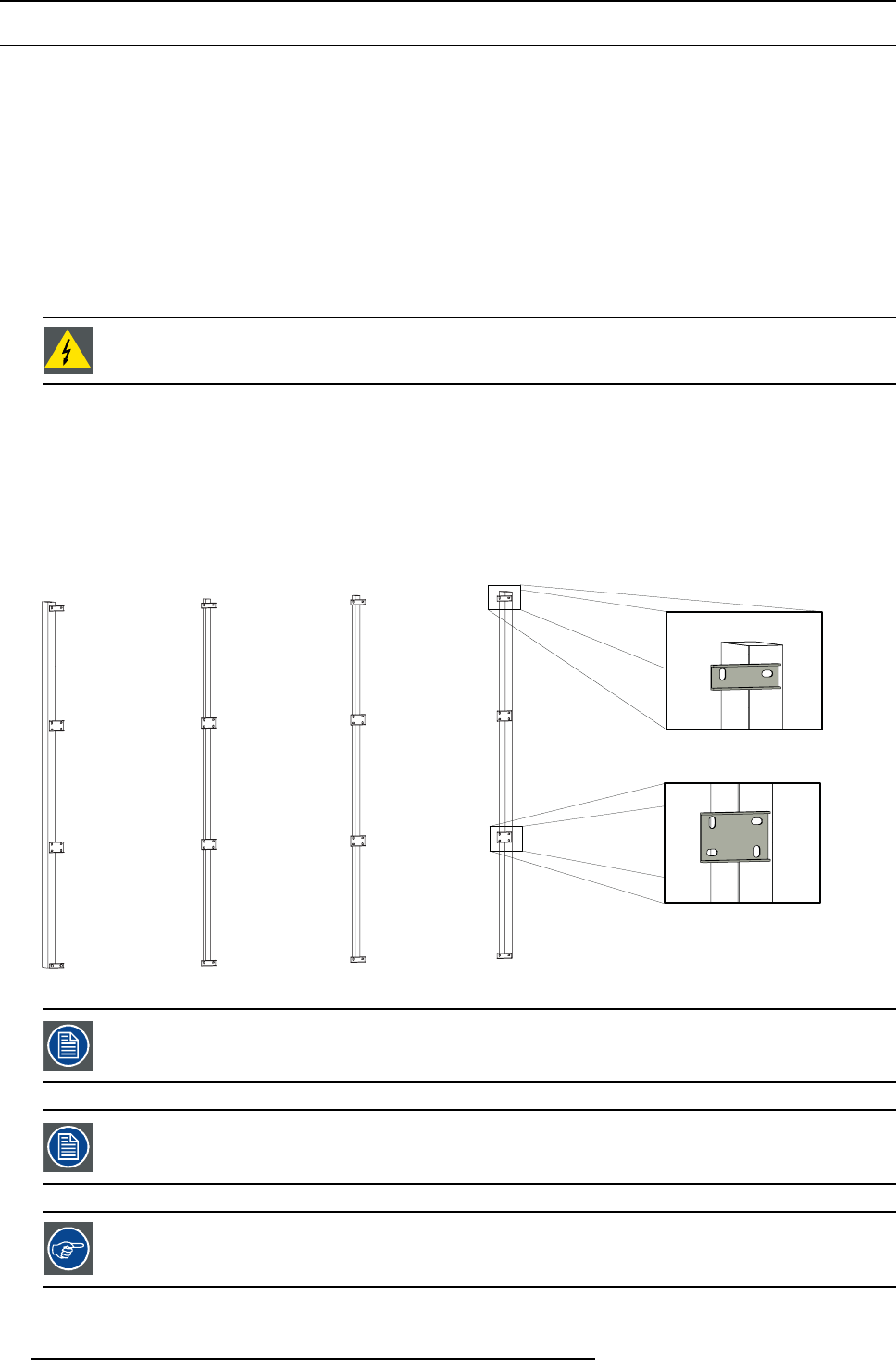

Example of a support structure
The support structurebelow consists of vertical I beams, when installed the tiles the bottom row tiles will directly stand on the support
structure. The mounting plates located in the back of the support structure when mounting SF-10V tiles.
Image 3-1
The drawing only shows the mounting plates’ location without the tiles, in fact the mounting plates are not
pre-installed on the support structure.
The support structure in the above example is pure illustrative for a SF-10V display c onsisting of 9 tiles.
It’s recommended to integrate a service platform in every other two row of the support structure . Such a
platform allow s a fast and easy intervention, if required.
12 R59770542 SF-10V DISPLAY 10/02/2012
