4. System overview
4.2 SF-10V tile
Introduction SF-10V tile
The SF-10V series is designed for ultra-large outdoor LED display installations. The SF-10V tile can overlay video and data sources
in their native quality. A unique video processing feature enables the creation of a visual resolution quasi double the physical reso-
lution dened by the cluster of LED’s spread on the surface of the display. The SF-10V tile is an IP65 rating in front of side and an
IP43 rating in back of side.

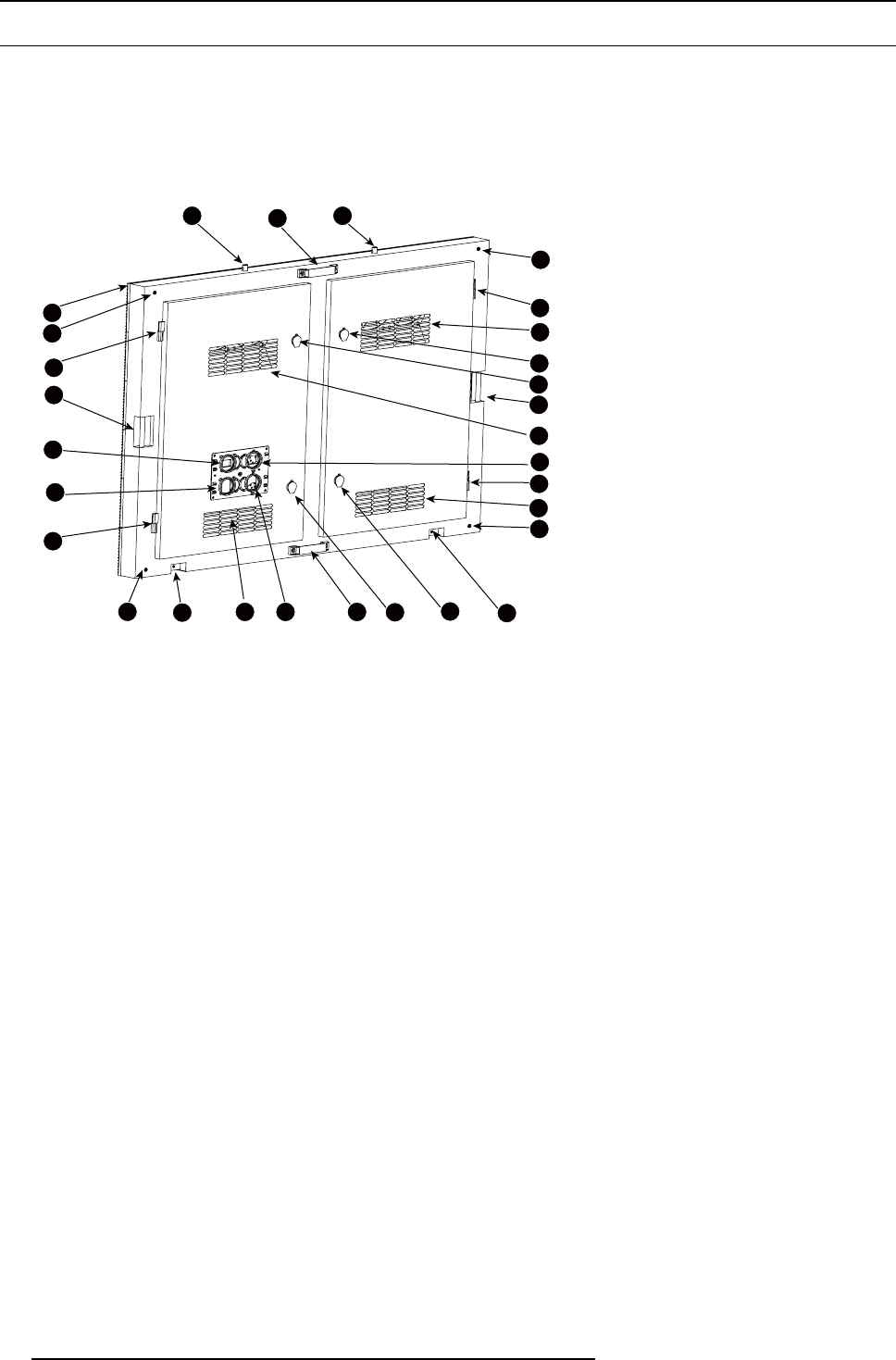

Parts location of the SF-10V tile
2
2
3
5
9
5
1
5
4
1
11
12
6
8
9
3
8
7
11
8
10
10
7
6
2
6
6
8
4
4
5
Image 4-3
1. Hoist point.
2. Handle.
3. Air outlet.
4. Hoist point.
5. Insert nuts for xing tile
6. Hinge
7. Lock.
8. Lock
9. Hidden handle
10. Hinge.
11. Air inlet
12. Insert nuts for xing tile.
13. Adjust block.
14. Lock.
15. Lock.
16. Handle.
17. Resyncer.
18. Air inlet.
19. Adjust block.
20. Insert nuts for xing tile.
21. Hinge.
22. Hidden handle.
23. Air outlet.
24. Hinge.
25. Insert nuts for xing tile.
Power cables used between SF-10V tiles
To meet the demands of each SF-10V application Barco offers several lengths of power cables to link power from tile to tile. Note
that the power output port of the last tile in the power chain has to be sealed with a waterproof cap.
