Citizen CLP-9301 Label Maker User Manual



Chapter 3 Names and Functions of Printer Parts
11

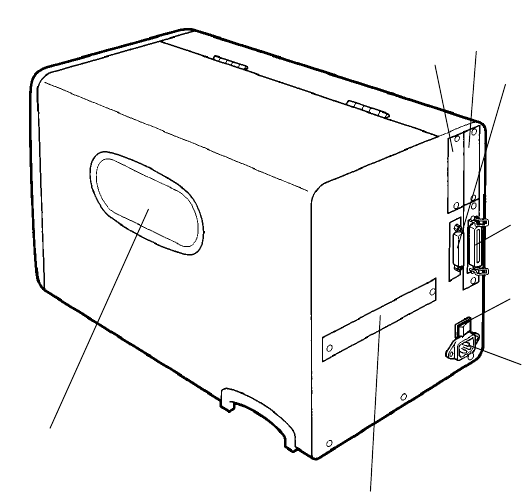

Rear and side covers
19 Media viewing window
20 AC main power input port
21 Power switch
22 Parallel interface connector
(or optional IEEE1284ECP or Ethernet
interface connector)
23 RS-232C serial interface connector
24 (not used)
25 Optional USB interface slot plate
26 (not used)
19
24
20
21
22
23
26
25
