Chapter 3 Names and Functions of Printer Parts
−
12
−

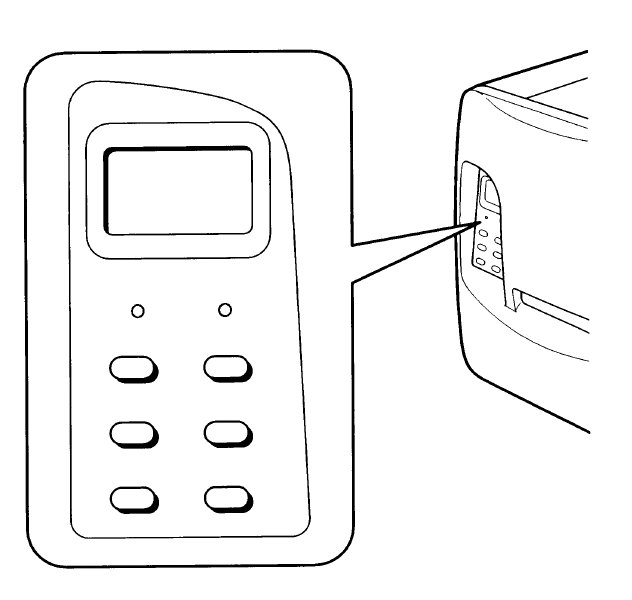

3.2 Control panel
The control panel consists of an LCD displaying two lines of eight characters, two LEDs and six
control keys. Two functions are assigned to each key except the MODE key.
Indications
LCD (Display)
Shows the current printer status by a message on the display.
POWER LED
Lights up when the printer power is turned on.
READY LED
• Lights up when the printer is placed into the print ready state. When the PAUSE key is pressed, the
READY LED goes out and shows “Pause” on the LCD (Display). By pressing the PAUSE key again,
the READY LED lights up.
• The printer is in Ready mode after the power-on sequence has finished.
• The Ready mode is selected using the MODE key.
EXIT SELECT
MENU DOWN
FUNCTION PAUSE
STOP FEED
MODE REPEAT
UP
CLP-9001
POWER READY
