Chapter 4 Media (Paper) and Ribbon
−
18
−

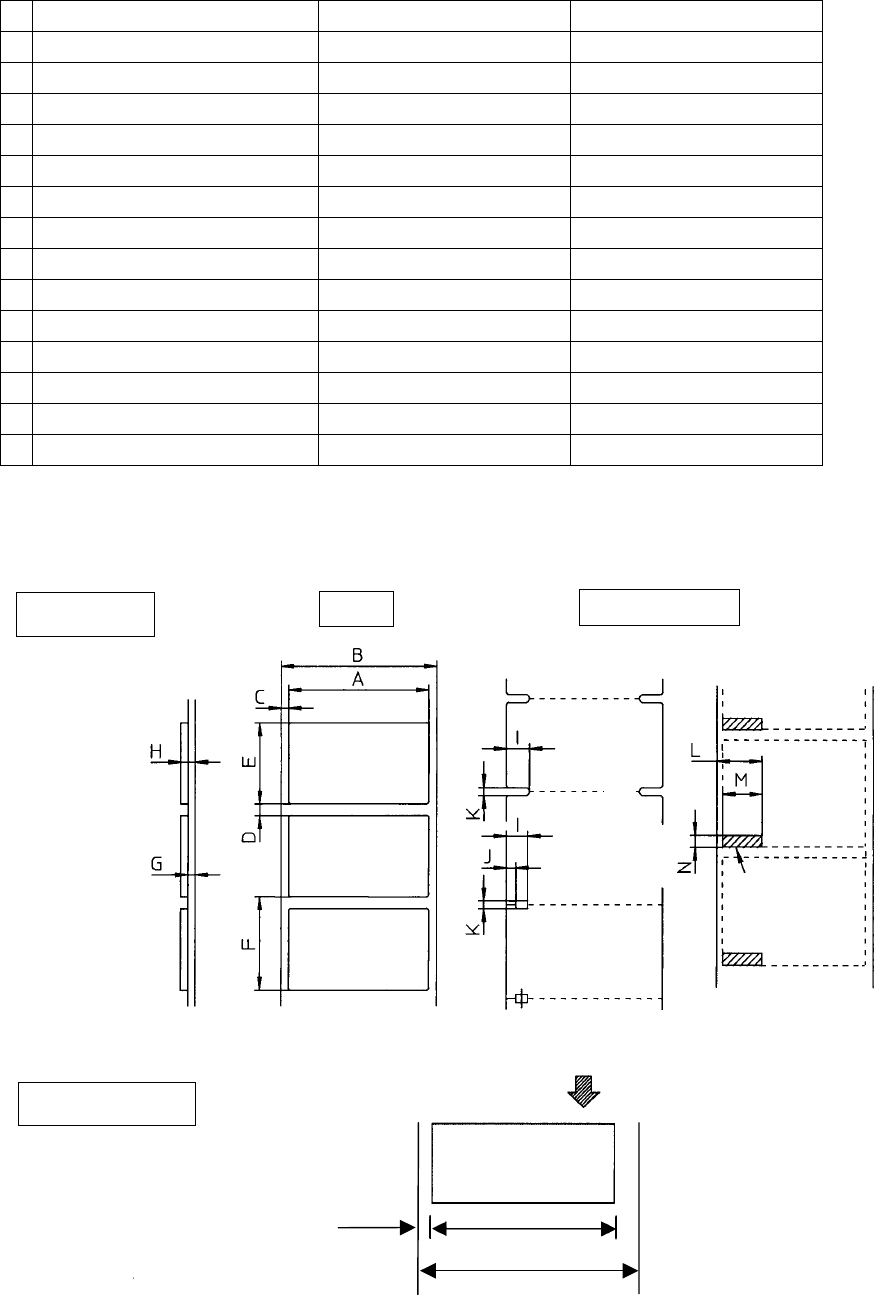

4.2 Paper size
Minimum value mm (in) Maximum value mm (in)
A Label width 19 (0.748) 115.00 (4.53)
B Liner width 19 (0.748) 115.00 (4.53)
C Label left edge position 0 2.5 (0.10)
D Label paper gap length 2 (0.079) 1016 (40)
E Label length 6.5 (0.256)* 1016 (40)
F Label pitch 6.5 (0.256) 1016 (40)
G Liner thickness 0.06 (0.0025) 0.089 (0.0035)
H Paper total thickness 0.14 (0.0055) 0.25 (0.01)
I Notch right end position 3.75 (0.148) 11 (0.43)
J Notch left end position 0 55.6 (2.19)
K Notch length 2 (0.079) 17.8 (0.70)
L Black mark right end position 12.7 (0.5) 115 (4.53)
M Black mark length 6 (0.236) 51.5 (2.02)
N Black mark width 3 (0.118) 17.8 (0.70)
Note • If paper has both label paper gap and black mark, use the paper gap sensor.
• For fanfold, use the paper gap sensor.
• * In Peel Off Mode, this value is 25.4mm (1in).
Paper size
Printable area
Direction of paper feed
Black-mark (back)
OD value: 1.5 or
more
Ink containing
carbon
Printable
area
Continuous paper
Notch detection Black mark detection
Use of paper gap sensor Use of paper gap sensor Use of black mark sensor
Default
p
rint width
Label
Label
Label
Label
115.0mm
Max. media width
W: 104.0mm for CLP-9301
101.8mm for CLP-9001
2.5mm W
Left side
margin
