PPU-231 User’s Manual
12
CITIZEN
4. OPERATION
4.1 Connecting the AC Adapter
4.1.1 Using the Power Connector
1. Make sure the power switch of the unit is turned off.
2. Connect an optional AC adapter cable connector with the power connector of the unit so that it locks in place.

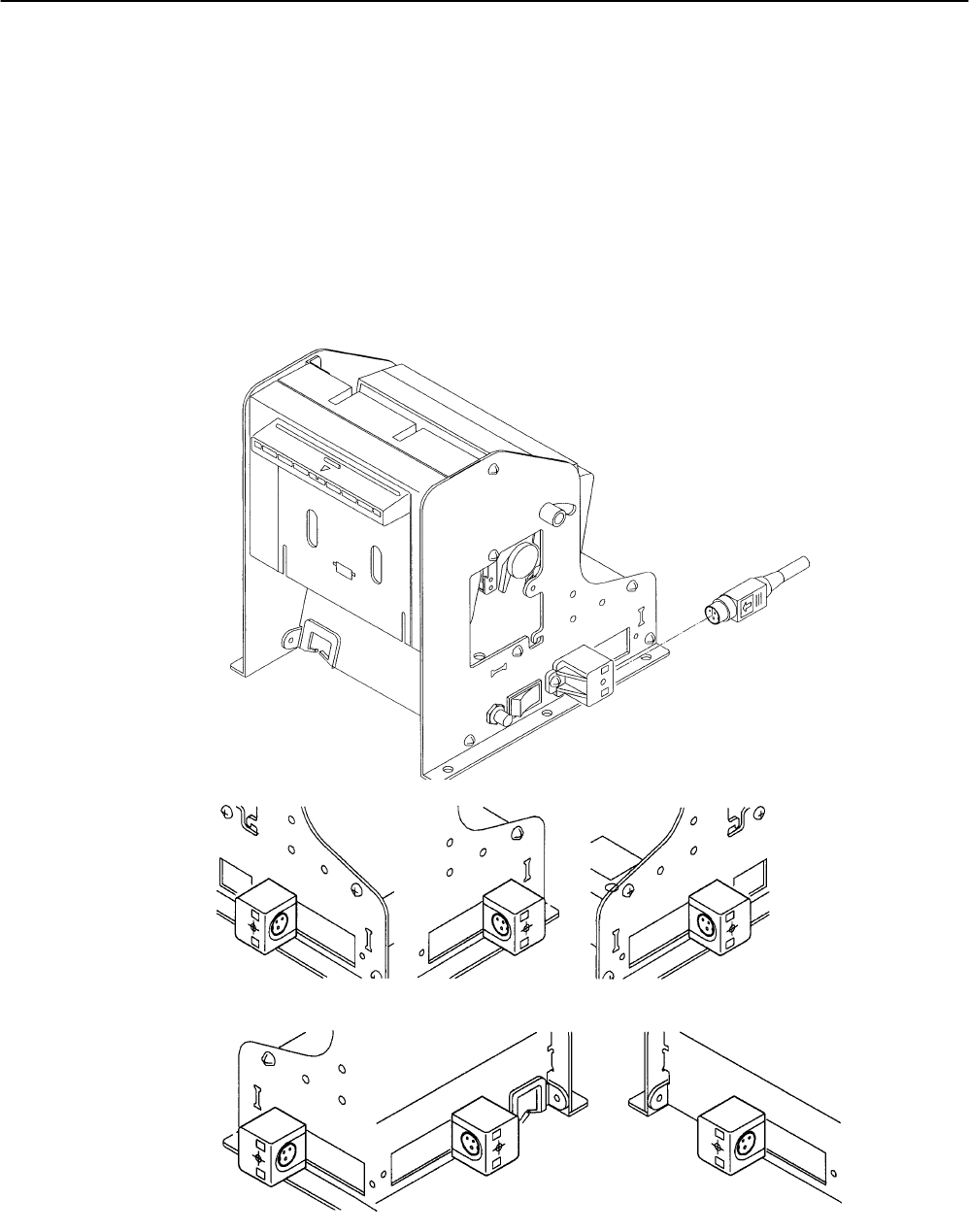

(As shown in the figure below, the power connector can be mounted at any one of the 6 locations on the unit.)
3. Connect an optional AC power cord to the AC adapter and plug it into an electrical outlet.
