8. POWER CONNECTOR
This connector is to supply the power from the special AC adapter (31AD).

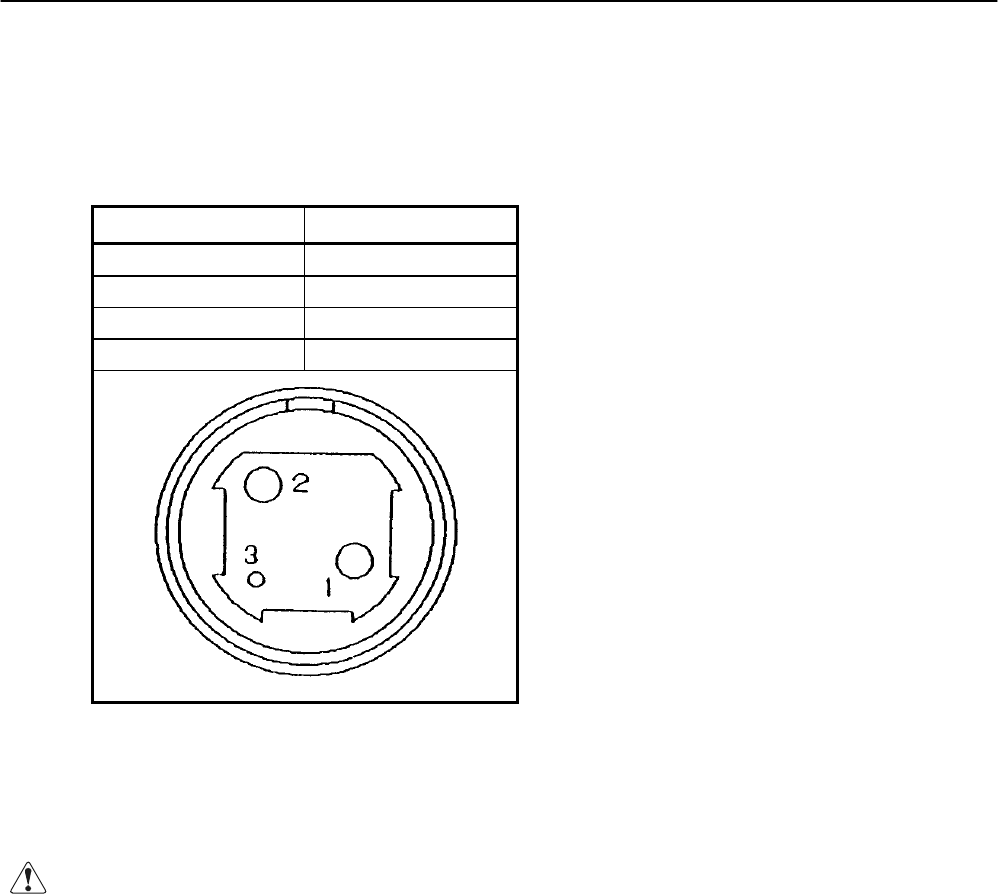

Connector's Pin Configurations
No. Function
1 +24V
2 GND
3 N.C
SHELL FG
Connector used : TSC7960-53-2010 (Made by HOSHIDEN) or its equivalent
Applicable connector : TSC8927-63-1100 (Made by HOSHIDEN) or its equivalent
TSC8927-53-1100 (Made by HOSHIDEN) or its equivalent
CAUTION:
1) Be sure to use the specified AC adapter. Use of any other power source could cause trouble to or break the
printer.
2) Do not connect the power source with different polarity.
3) After using the printer or when not using it for a long period of time, be sure to unplug the AC adapter from
a plug socket for your safety.
