PPU-231 User’s Manual
17
CITIZEN
4.3 Inserting the Paper
CAUTION:
1) Be sure to use the specified paper roll.
2) Use of non-specified paper may not guarantee the print quality, printing head life, presenter operation, and
so on.

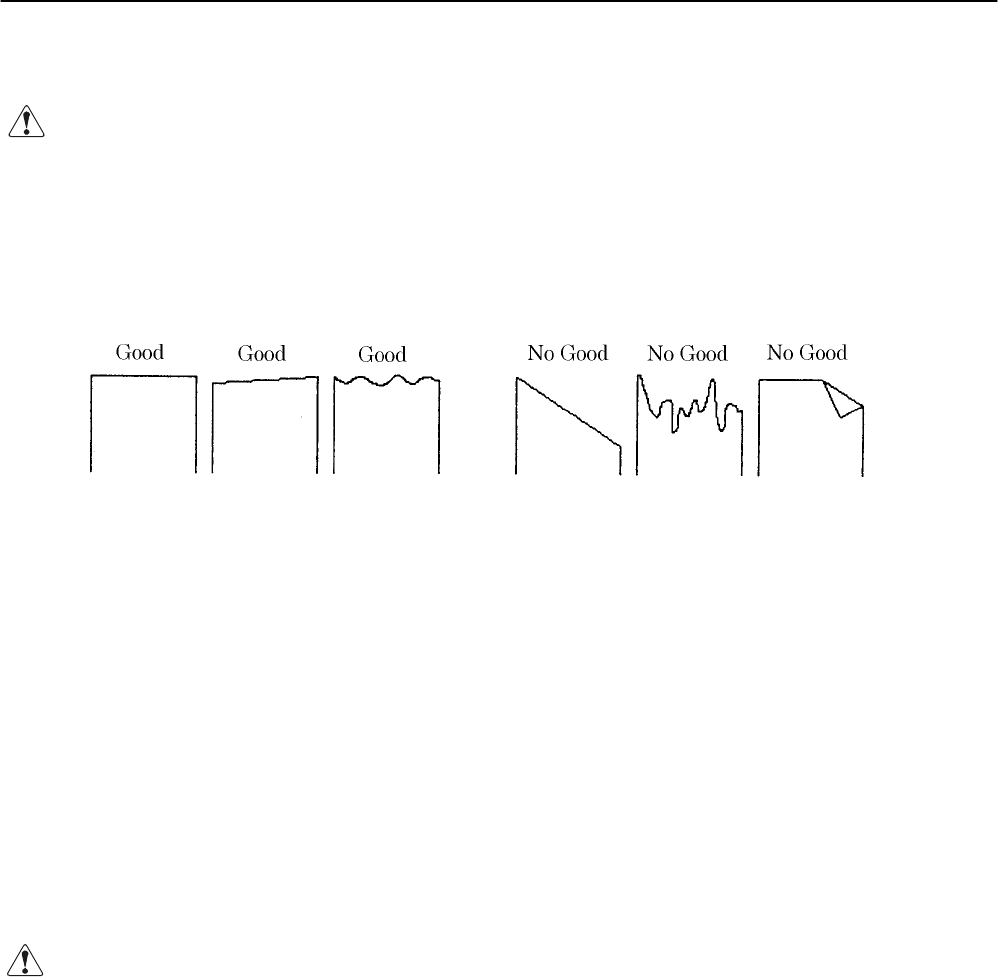

3) Do not insert a ragged or dog-eared end of the paper roll, because it could result in a paper jam or insertion
error.
1. Cut the front end of the paper roll almost at a right angle.
2. Insert the paper roller of the paper holding unit into the core of the paper roll as shown in the figure on
the next page.
3. Make sure the paper winding direction and put the paper roll onto the PHU.
4. Make sure that the power is turned on.
5. If there is still some paper remaining after a paper-out indication, eliminate the paper roll according to "4.4
How to Remove the Remaining Paper Roll."
6. Raise the head-up lever of the printer/presenter unit. (See the next page.)
7. Insert the front end of the paper roll straight into a paper insertion slot as shown in the figure on the next
page, until the paper stops.
8. Put back the head-up lever. The paper is automatically pulled in by the platen roller to feed a constant
amount of paper. (When auto-loading is enabled.) Remove the cut paper to enable printing.
CAUTION:
1) If the paper roll is still slack, rewind the paper to remove the slack.
2) If the paper roll is tilted, raise the head-up lever to correct the paper roll position, or pull out the paper roll
and set it again.
3) Do not hold or press the paper roll while printing, because it could cause a paper jam.
4) After the paper is set, the printer is made ready to start printing. Note that if data is remaining in the buffer,
the printer will start printing after the paper is set.
