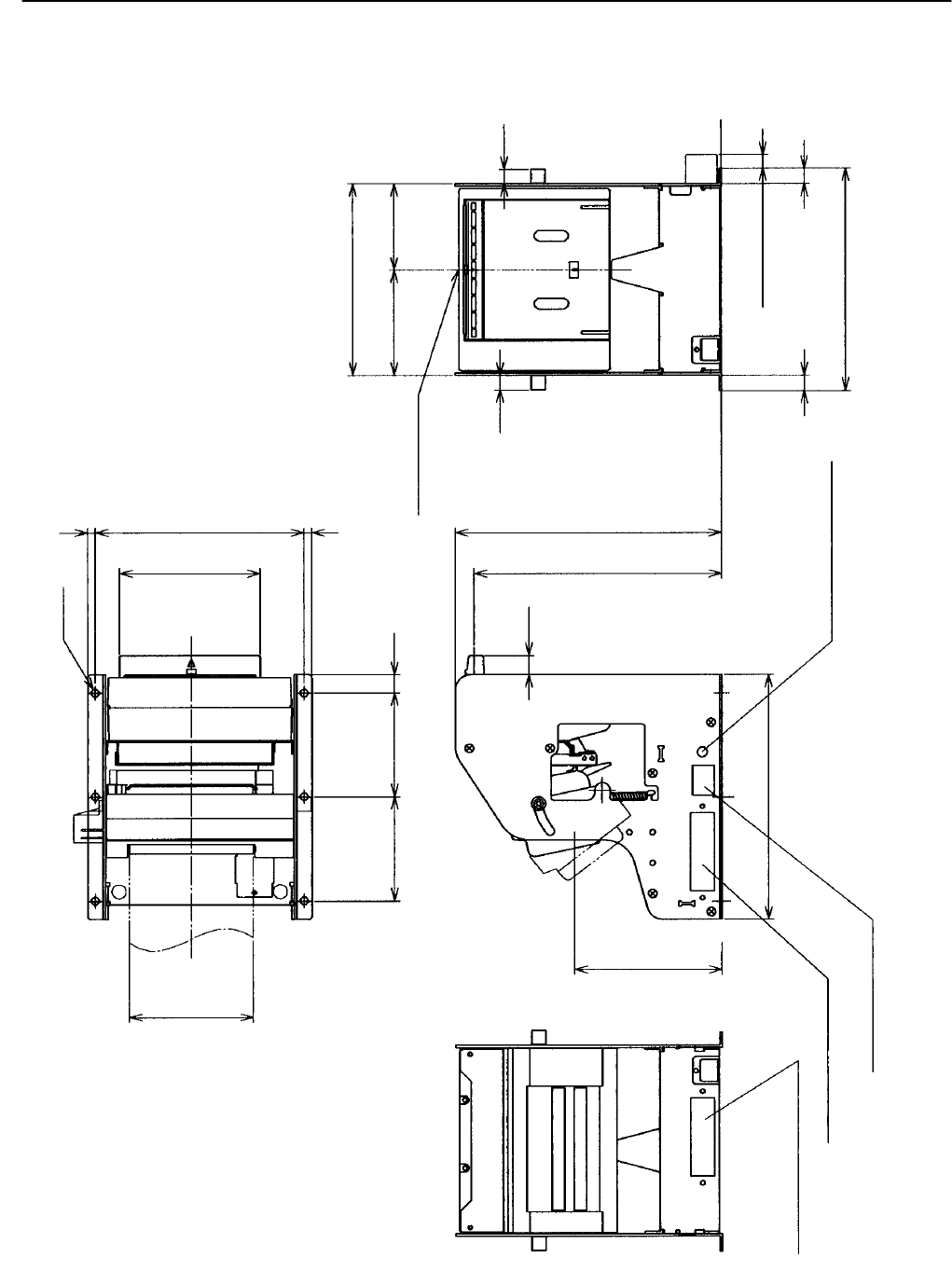

APPENDIX 2. OUTLINE DRAWING FOR PPU
9
Unit: mm
12.5
160
124.7
67. 7
57
10
10
(Paper Roll Width)
160 (Paper Exit Height)
172
80
0/-0.5
90.8
Paper Center
68
12
φ5
10
144.7
10
(Power Connector)
5
5 134.7
68
(Can mount on the
other side)
FEED Switch
Mounting Hole
Interface Connector
Hole
Power Switch Mounting Hole
Interface Connector Hole
(Can mount on the other side)
(Can mount on the other side)
95
(Paper Insertion Height)
