4.3 Connecting the Drawer Kick-Out Connector
1. Turn off the power.
2. Check the top and bottom of the drawer kick-out cable connector and connect it to the drawer kick-out
connector located at the lower section of the printer.
3. Screw the grounding cable of the drawer to the grounding terminal located at the lower section of the
printer.
CAUTION: •Connect only the prescribed drawer (Solenoid) to the drawer kick-out connector.
4.4 Opening/Closing the Auto Cutter (iDP-3551)
1. Hold the auto cutter and, while pushing the lock lever, turn the auto cutter over to open it.
2. When closing the auto cutter, be sure that it is securely locked by the lock lever.
CAUTION: •When closing the auto cutter, do so gently not to give a shock.

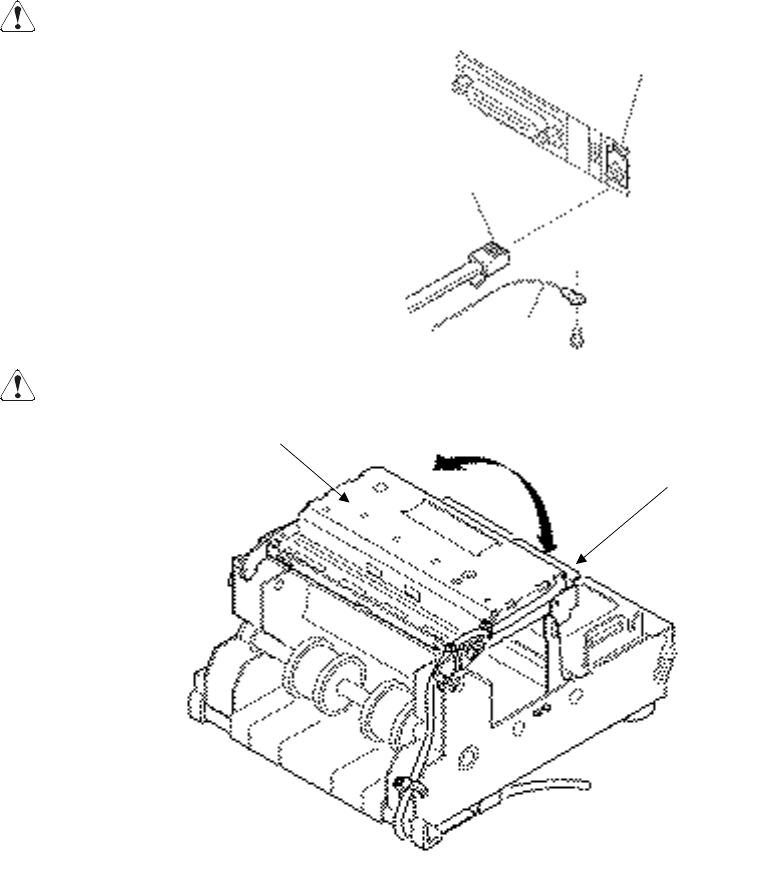

Drawer Kick-Out Connector
Earth
Terminal
Drawer Kick-Out Cable Connector
Auto Cutter
Lock Lever
