12. WINDER CONNECTOR
12.1 Specifications of Winder Connector
(1) Winder drive signal
The winder drive signal is output synchronous with the LF signal.
(2) Electrical characteristics
1) Drive voltage: 24 V DC
2) Drive current: 0.8 A at maximum

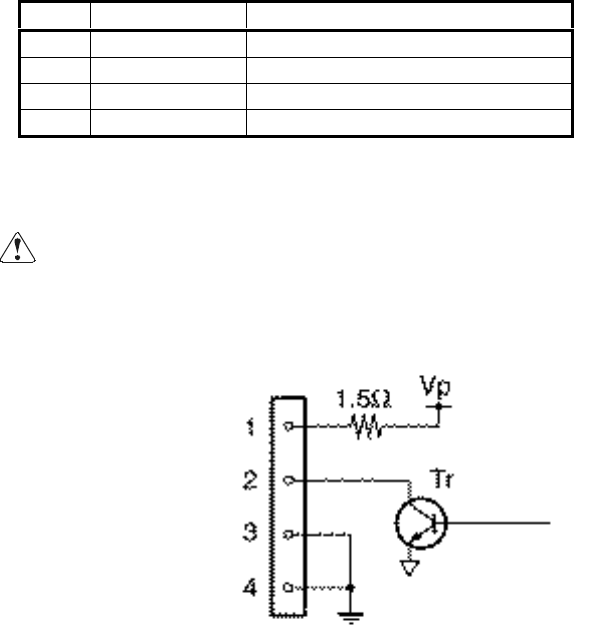

12.2 Connector's Pin Configuration
No. Signal Function
1 VPX Winder drive power
2 WD Winder drive signal
3 FG Frame Ground
4 FG Frame Ground
Connector used : 5045-04A (MOLEX)
Applicable connector : 5209-04 (MOLEX) or equivalent
CAUTION : • This connector shall be used for Auto Winder AW-3 only.
Do not connect any other device.
12.3 Drive Circuit
